I-87061PW-G CR ICP DAS Relay IO Modules

The I-87061PW is a 16-channel Power Relay Output module where each Relay Output channel is independent. The I-87061W is a 16-channel power relay output module with the output channels partitioned into four groups, where each group provides four channels that share a single COM point. Both the I-87061W and I-87061PW modules include 16 LED indicators that can be used to monitor the status of the relay output, and options for configuring both power-on and safe relay output values are also available. 4 kV ESD protection and 3750 VDC intra-module isolation are provided as standard to enhance the noise protection capabilities in harsh industrial environments.

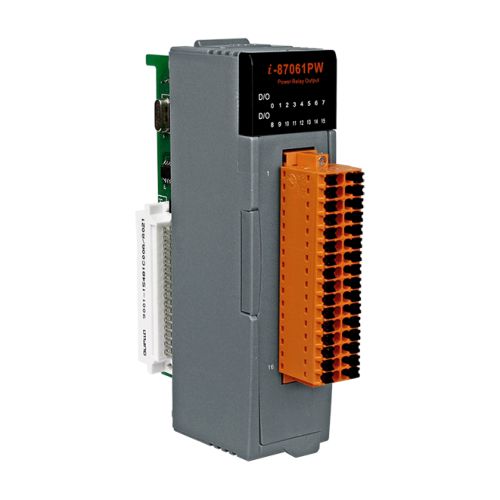

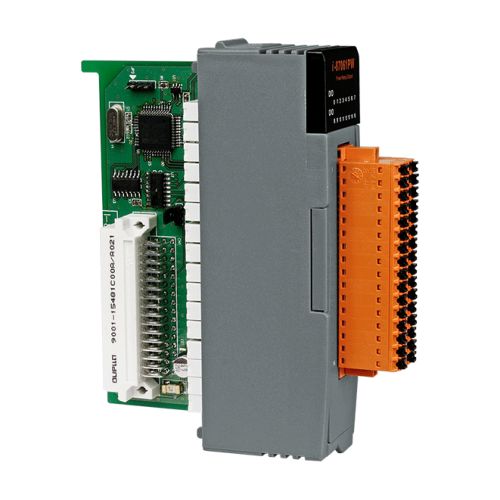

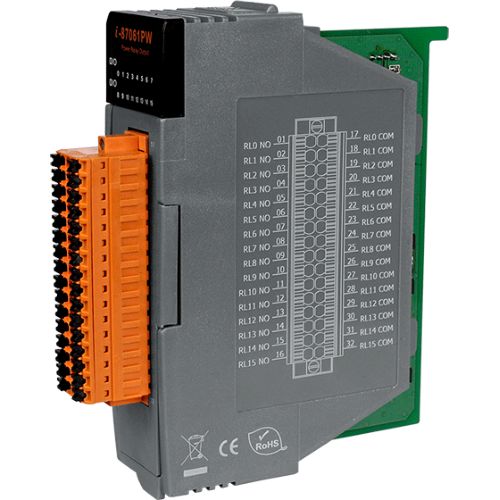

I-87061PW-G CR: 16-channel Power Relay Output Module (Each Relay Output Channel is Independent) (Gray Cover) (RoHS)

• ±4 kV ESD Protection
• 3750 VDC Intra-Module Isolation
• Configurable Power-on Value Settings
• Configurable Safe Value Settings
• Dual Watchdog
• Wide Operating Temperature Range: -25 to + 75°C

Relay Output

Channels: 16 (Form A)
Type: Power Relay
Wiring: Differential
Form A Relay:

• Contact Rating: 3 A @ 250 VAC/per Channel / 3 A @ 24 VDC/per Channel
• Min. Contact Load: 10 mA @ 5 V
• Contact Material: Silver Tin Alloy
• Operate Time: 10 ms
• Release Time: 5 ms
• Mechanical Endurance: 2 x 10^7 ops.
• Electrical Endurance: 1 x 10^5 ops.

Power-on Value: Yes
Safe Value:  Yes

Communication

Interface: RS-485
Format: N, 8, 1
Baud Rate: 1200~ 115200 bps
Protocol: DCON
Dual Watchdog: Yes, Module (1.6 Seconds), Communication (Programmable)

LED Indicator/Display

System LED Indicator: 1 as Power/Communication Indicator
I/O LED Indicator: Yes, 16 as Power Relay Output Indicators
7-Segment LED Display: --

Isolation

Intra-Module Isolation, Field-to-Logic:  3750 VDC

EMS Protection

ESD (IEC 61000-4-2):  ±4 kV Contact for each Terminal / ±8 kV Air for Random Point

Power

Power Consumption: 1.9 W Max.

Mechanical

Dimensions (W x L x H): 100 mm x 30 mm x 114mm

Environment

Operating Temp.: -25 ~ +75°C
Storage Temp.: 40 ~ +85°C
Humidity: 10 ~ +95% RH, non-condensing
