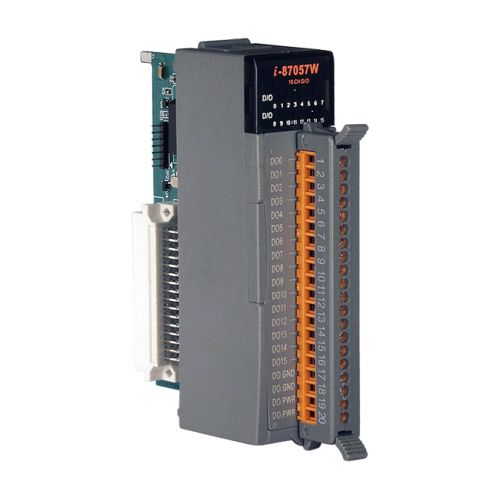

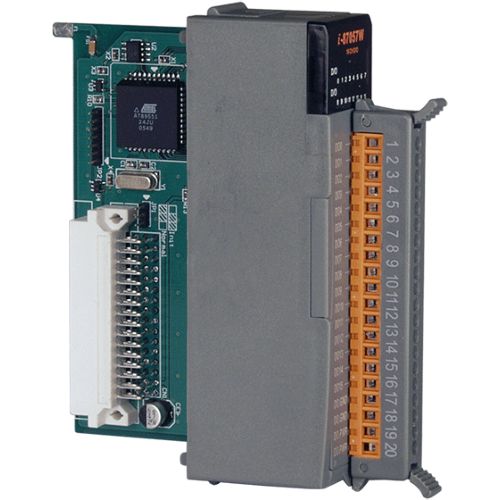

I-87057W-G CR ICP DAS Digital IO Modules

Digital Output

Output Channels: 16 (Sink)
Output Type: Isolated Open-collector
Max Load Current: 100 mA/ channel
Load Voltage: 5Vdc to 30Vdc
Intra-module Isolation, Field to Logic: 3750Vrms
4KV ESD Protection: Yes, contact for each terminal

Watchdog

Dual Watchdog: Yes, Module(1.6 sec) and Communication(Programable)
Safe Value(When Host Fail or Communication Fail): Yes
Power ON Preset Value: Yes

LED Display

1 LED as Power/ Communication Indicator
16 LEDs as Digital Output Indicators

Power

Power Consumption: 1W

Environment

Operating Temperature: -25 to 75 °C
Storage Temperature: -30 to 75 °C
Humidity: 5 to 95% RH, non-condensing

Dimensions

30mm x 102mm x 115mm(W x L x H)
