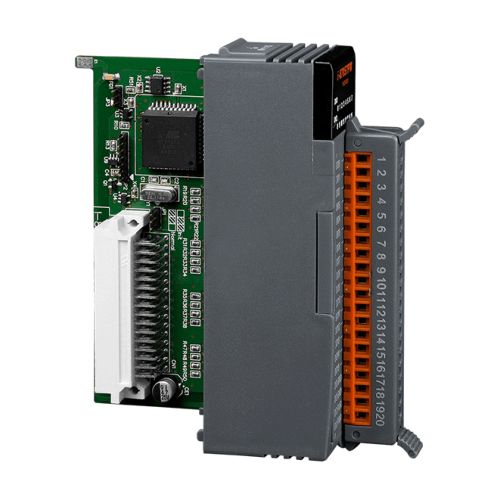

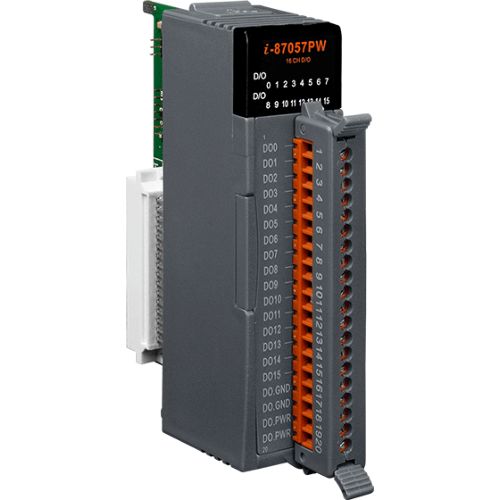

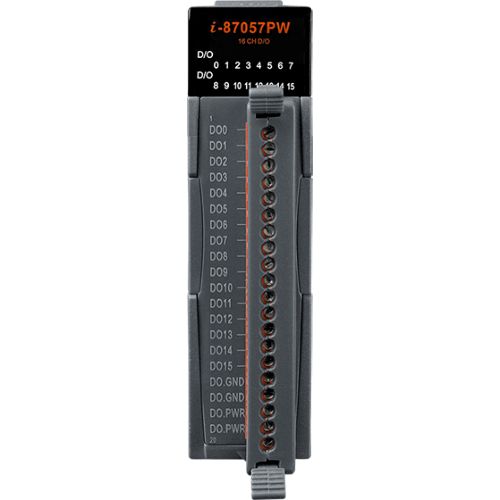

I-87057PW-G CR ICP DAS Digital IO Modules

• Digital Outputs for Sink Type
• 4 kV ESD Protection
• Dual Watchdog
• Power On Value Setting
• Safe Value Setting
• Short Circuit Protection
• 3750 VDC Intra-Module Isolation
• A Wide Range of Operating Temperature: -25 °C ~ 75 °C
• RoHS Compliance

I-87057PW offers 16 channels for digital output, each of which features Photo-couple isolation. I-87057PW supports sink type output with short-circuits protection. There are options for power on value and safe value for your consideration. I-87057PW has 16 LED indicators for DO channel status. 4 kV ESD protection, 3750 VDC intra-module isolation are standard.
Operating Voltage: +3.5 ~ +50 V
Overvoltage Protection: 60 V
Max Load Current: 700 mA/ channe
Short-circuit and Overcurrent Protection: Yes, 1.4 A

Digital Output

Channels: 16, Sink(NPN)
Output Voltage: +3.5 ~ +50 V
Output Current: 700 mA per channel, Direct drive power relay module
Overvoltage Protection: 60 VDC
Overload Protection: Yes
Short-circuit and Overcurrent Protection: Yes, 1.4 A
Thermal Overload trip temperature: 150°C
ESD Protection (IEC 61000-4-2):
          ±4KV Contact for each terminal,
          ±8KV Air for random point
Intra-module Isolation, Field to Logic: 3750 VDC

Interface

Interface: RS-485
Format: N, 8, 1
Baud Rate: 1200 ~ 115200 bps

Watchdog

Dual Watchdog: Yes, Module(1.6 sec) and Communication(Programable)
Safe Value(When Host Fail or Communication Fail): Yes
Power ON Preset Value: Yes

LED Display

1 LED as Power/ Communication indicator
16 LEDs as Digital Output indicators

Power

Input Voltage Range: 10 ~ 30 VDC
Power Consumption: 0.4 W

Environment

Operating Temperature: -25 ~ 75 °C
Storage Temperature: -40 ~ 85 °C
Humidity: 5 ~ 95% RH, non-condensing

Dimensions

30mm x 102mm x 115mm (W x L x H)
