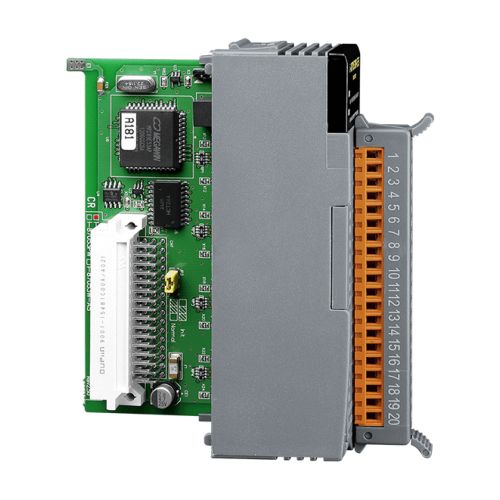

I-87053W-E5-G CR ICP DAS Digital IO Modules

Digital Input

Input Channels: 16 (Wet Contact)
Wet contact (Sink): On Voltage Level: +68 VDC to +150 VDC
Off Voltage Level: +48 VDC Max.
Input Impedance: 50 kOhm, 0.5 W
Counters:
       Channels: 16
       Max. Counts: 16-bit (65535)
       Max. Input Frequency: 100 Hz
       Min. Pulse Width; 5 ms
Intra-module Isolation, Field to Logic: 3750 Vrms
ESD Protection: 4 kV (contact for each terminal)

Watchdog

Dual Watchdog: Yes, Module(1.6 sec) and Communication(Programable)

LED Display

1 LED as Power/ Communication Indicator
16 LEDs as Digital Input Indicators

Power

Power Consumption: 0.8 W max

Environment

Operating Temperature: -25 ~ 75 °C
Storage Temperature: -30 ~ 75 °C
Humidity: 5 to 95% RH, non-condensing

Dimensions

30mm x 102mm x 115mm (W x L x H)
