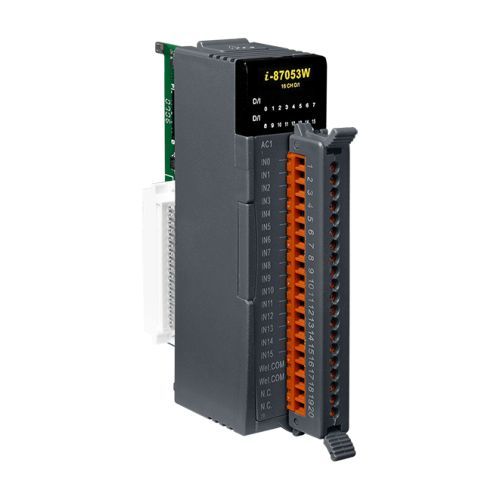

I-87053W-AC1 CR, 16-ch Isolated AC (10~80VAC) Digital input Module
I-87053W-AC1 CR
16-ch Isolated AC (10~80VAC) Digital input Module
Features
- 16-channel AC Digital Input
- Photo Couple Isolation
- Channel Status LED Indicators
- All Digital Channels Input can be used as Counters
- ±4 kV ESD Protection
- RoHS Compliant
- Wide Operating Temperature Range: -25 ~ +75°C
Introduction
I-87053W-AC1 offers 16 channels for AC digital input. All of its channels are not only with isolation but also able to be used as counters. I-87053W-AC1 has 16 LED indicators for channel status as well as qualification for 4 kV ESD protection and 3750 Vrms intra-module isolation.
Applications
- Building Automation
- Factory Automation
- Machine Automation
- Remote Maintenance
- Remote Diagnosis
- Testing Equipment
Specifications
CPU Module
Watchdog Timer: Yes, Module (1.6 Seconds), Communication (Programmable)
Isolation
Intra-module Isolation: 3750 Vrms
EMS Protection
ESD (IEC 61000-4-2): ± 4 kV Contact for Each Terminal
±8 kV Air for Random Point
LED Indicators
Status: 1 x Power and Communication
16 x I/O
Digital Input/Counter
Channels: 16
Type: Wet Contact
ON Voltage Level: 10 ~ 80 VAC
OFF Voltage Level: 3 VAC Max.
Max. Counts: 16-bit (65535)
Frequency: 100 Hz
Min. Pulse Width: 5 ms
Input Impedance: 10 kΩ, 0.66 W
COM Ports
Ports: 1 x RS-485
Baud Rate: 1200 ~ 115200 bps
Data Format: N, 8, 1
Protocol: DCON
Power
Consumption: 1.5 W Max.
Mechanical
Dimensions (mm): 30 x 102 x 115 (W x L x H)
Environment
Operating Temperature: -25 ~ +75 °C
Storage Temperature: -30 ~ +75 °C
Humidity: 5 ~ 95% RH, Non-condensing
