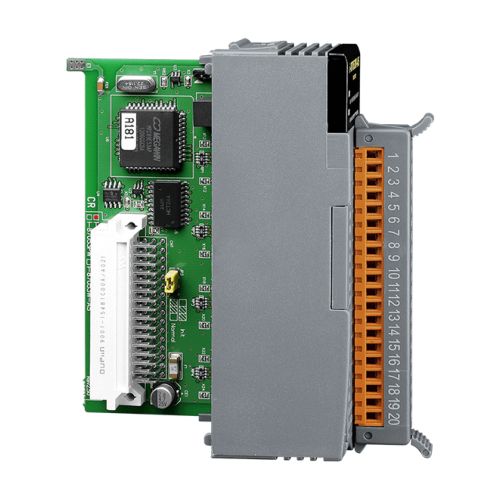

I-87053W-A5-G CR, 16-ch High-voltage Isolated Digital input (Dry, Wet, 68~150VDC) Module
I-87053W-A5-G CR
16-ch High-voltage Isolated Digital input (Dry, Wet, 68~150VDC) Module
Free Shipping
Features
- 16-channel Digital Inputs
- 150 VDC High-voltage Digital Inputs
- Photocouple Isolation
- Long Distance Measurement
- All Channels can be used as 16-bit Counters
- 4 kV ESD Protection
- 3750 VDC Intra-module Isolation
- Dual Watchdog
- Wide Operating Temperature Range: -25 ~ +75°C
Introduction
The I-87053W-A5 provide 16 channels for high voltage digital input, each of which features photocouple isolation. The input voltage level can be as high as 150 VDC. In addition, either sink- or sourcetype digital input can be selected via wire connections, and all channels are able to be used as 16-bit counters. The effective distance for dry contact is up to 500 meters. The I-87053W-E5 also provide 16 LED indicators that can be used to monitor the DI channel status. 4 kV ESD protection and 3750 VDC intra-module isolation are also provided to enhance noise immunity capabilities in industrial environments.
Applications
- Building Automation
- Factory Automation
- Machine Automation
- Remote Maintenance
- Remote Diagnosis
- Testing Equipment
Specifications
CPU Module
Watchdog Timer: Yes, Module (1.6 Seconds), Communication (Programmable)
Isolation
Intra-module Isolation: 3750 VDC
EMS Protection
ESD (IEC 61000-4-2): ± 4 kV Contact for Each Terminal
±8 kV Air for Random Point
LED Indicators:
Status: 1 x Power and Communication
16 x I/O
Digital Input/Counter
Channels: 16
Type: Dry Contact,
Wet Contact
Sink/Source (NPN/PNP): Sink/Source
ON Voltage Level: Dry: Close to GND.
Wet: +68 VDC ~ +150 VDC
OFF Voltage Level: Dry: Open
Wet: +48 VDC Max.
Max. Counts: 16-bit (65535)
Frequency: 100 Hz
Min. Pulse Width: 5 ms
Effective Distance: 500 m Max.
Input Impedance: 50 kΩ, 1 W
Overvoltage Protection: 220 VDC
COM Ports
Ports: 1 x RS-485
Baud Rate: 1200 ~ 115200 bps
Data Format: N, 8, 1
Protocol: DCON
Power
Consumption: 0.8 W Max.
Mechanical
Dimensions (mm): 30 x 102 x 115 (W x L x H)
Environment
Operating Temperature: -25 ~ +75 °C
Storage Temperature: -40 ~ +85 °C
Humidity: 10 ~ 95% RH, Non-condensing
