I-87053W-A2-G CR ICP DAS Digital IO Modules

The I-87053W, I-87053PW and I-87053W-A2 offer 16 channels for digital input, catering for both dry and wet contact, with an effective distance for dry contact of up to 500 meters. All channels feature photocouple isolation, and can also be used as 16-bit counters. The I-87053W series provides 16 LED indicators that can be used to monitor the DI channel status. 4 kV ESD protection and 3750 VDC intra-module isolation are also provided to enhance noise immunity capabilities in industrial environments. ICP DAS recommends selecting either the "P" or "A2" version of the digital input module for industrial use.

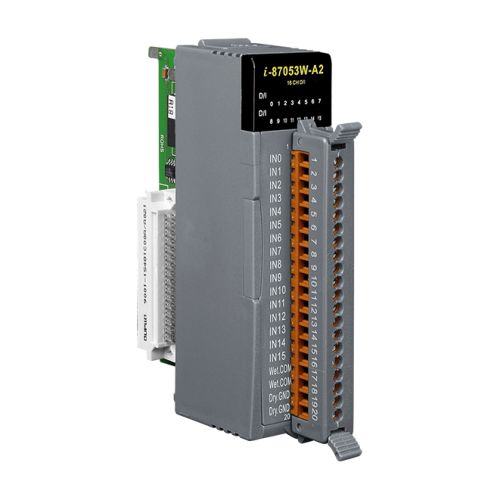

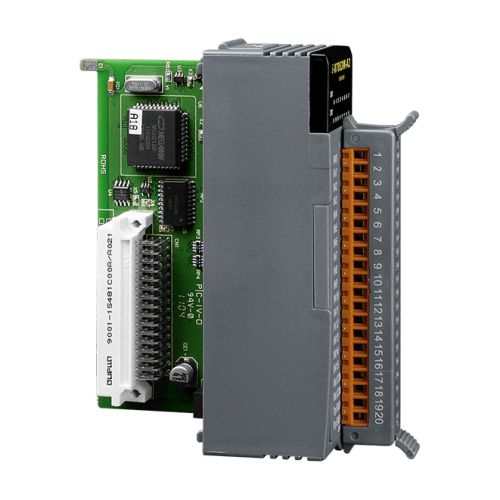

I-87053W-A2-G CR: 16-channel Isolated Digital Input Module with 16-bit Counters (Gray Cover) (RoHS)

• 16-channel Digital Inputs
• Dry and Wet Contact, Selectable via Wire Connections
• Photocouple Isolation
• Long Distance Measurement
• 4 kV ESD Protection
• All Channel can be used as 16-bit Counters
• 3750 VDC Intra-Module Isolation
• Dual Watchdog
• Wide Operating Temperature Range: -25 ~ +75°C

Digital Input

Channels: 16
Type: Dry, Wet
Sink/Source (NPN/PNP): Sink, Source
Dry Contact: On Voltage Level = Close to GND / Off Voltage Level = Open
Wet Contact: On Voltage Level = +19 VDC ~ +50 VDC / Off Voltage Level = +11 VDC Max.
Input Impedance: 10 kΩ, 1 W
Counters:

• Channels 16
• Max. Count 16-bit (65535)
• Max. Input Frequency 100 Hz
• Min. Pulse Width 5 ms

Channel-to-Channel Isolation: --
Overvoltage Protection: 100 VDC
Low Pass Filter: Yes
Effective Distance for Dry Contact: 500 m Max.

Communication

Interface: RS-485
Format: N, 8, 1
Baud Rate: 1200 ~ 115200 bps
Protocol: DCON
Dual Watchdog: Yes, Module (1.6 Seconds), Communication (Programmable)

LED Indicators/Display

System LED Indicator: 1 LED as Power/Communication Indicator
I/O LED Indicator: 16 LEDs as High/Low Alarm Signals

Isolation

Intra-Module Isolation, Filed-to-Logic: 3750 VDC

EMS Protection

ESD (IEC 61000-4-2): 4 kV Contact for Each Terminal / 8 kV Air for Random Point

Power

Power Consumption: 0.8 W Max.

Mechanical

Dimensions (W x L x H): 30 mm x 102 mm x 115 mm

Environments

Operating Temp.: -25 ~ +75°C
Storage Temp.: -40 ~ +85°C
Humidity: 10 ~ 95% RH, non-condensing
