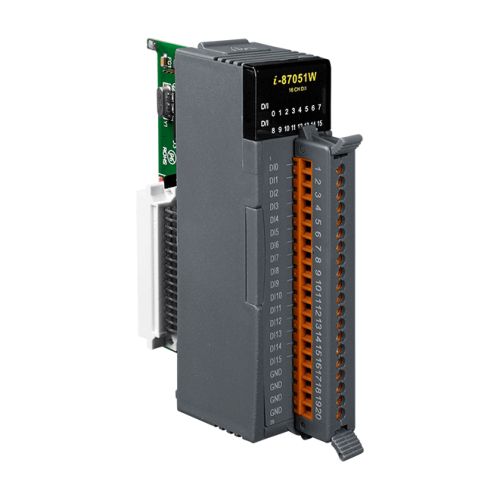

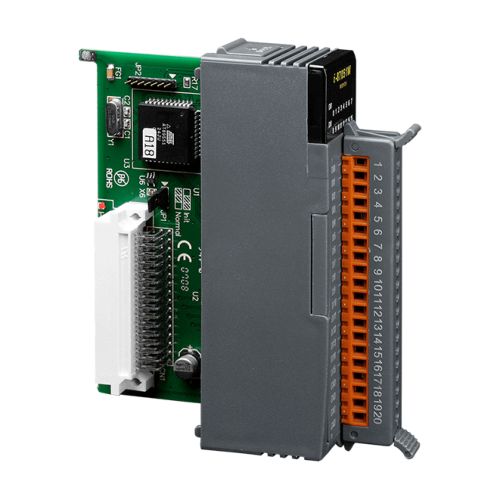

I-87051W-G CR ICP DAS Digital IO Modules

Digital Input

Input Channels: 16 (Source)
Input Type: Non-isolated
On Voltage Level: +1V max (Connect to GND.)
Off Voltage Level: +3.5V ~ 30V (Open)
Counters:
        Channels: 16
        Max. Counts: 16-bit (65535)
        Max. Input Frequency: 100Hz
        Min. Pulse Width: 5ms
4KV ESD Protection: Yes, contact for each terminal

Watchdog

Dual Watchdog: Yes, Module(1.6 sec) and Communication(Programable)

LED Display

1 LED as Power/ Communication Indicator
16 LEDs as Digital Input Indicators

Power

Power Consumption: 0.5W

Environment

Operating Temperature: -25 to 75°C
Storage Temperature: -30 to 75°C
Humidity: 5 to 95% RH, non-condensing

Dimensions

30mm x 102mm x 115mm(W x L x H)
