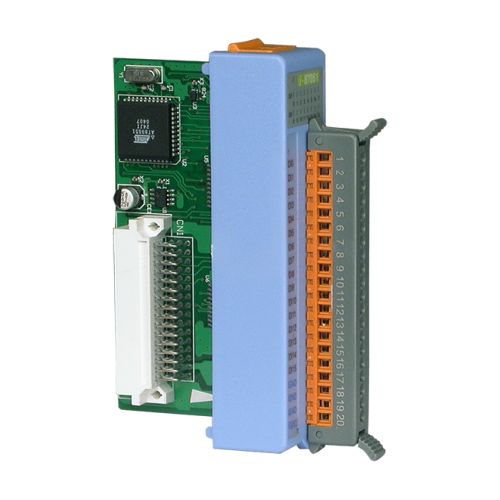

I-87051 CR ICP DAS Digital IO Modules

Digital Input

Input Channels: 16 (Source)
Input Type: Non-isolated
On Voltage Level: +1V max (Connect to GND.)
Off Voltage Level: +3.5V ~ 30V (Open)
Counters:
     Channels: 16
     Max. Counts: 16-bit (65535)
     Max. Input Frequency: 100Hz
     Min. Pulse Width: 5ms

LED Display

1 LED as Power/ Communication Indicator
16 LEDs as Digital Input Indicators

Power

Power Consumption: 0.9W

Environment

Operating Temperature: -25 to 75 °C
Storage Temperature: -30 to 75 °C
Humidit: 5 to 95% RH, non-condensing

Dimensions

30mm x 88mm x 115mm(W x L x H)
