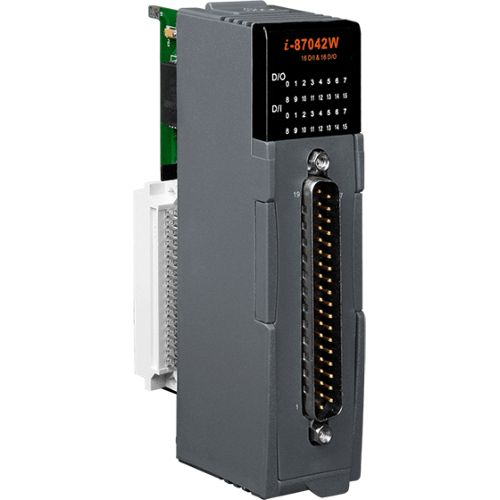

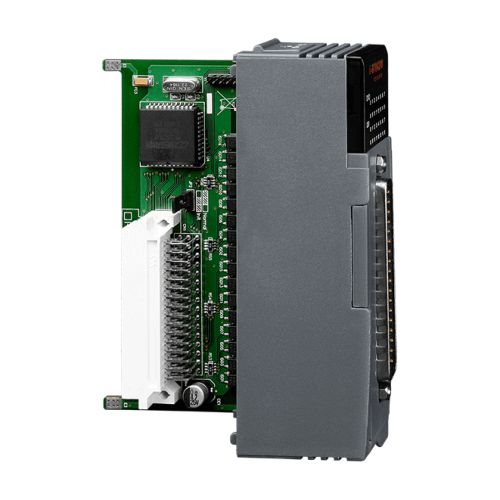

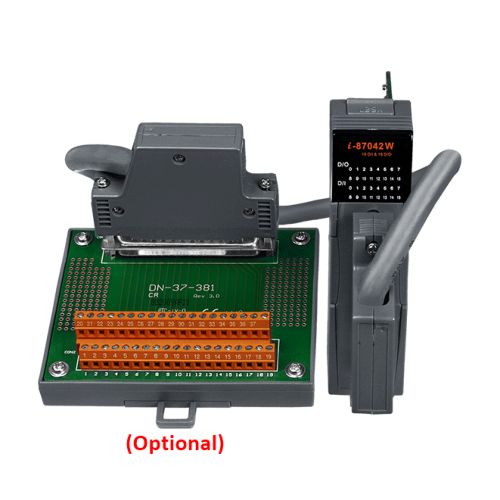

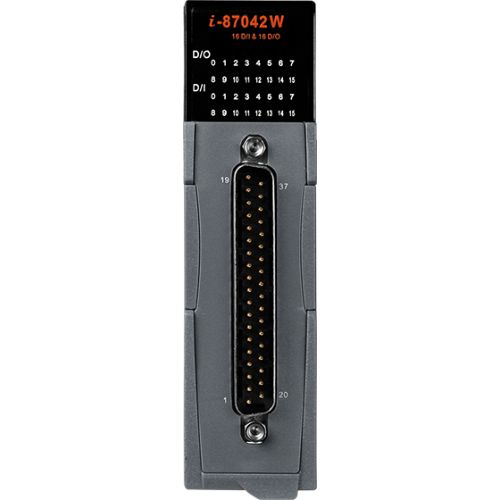

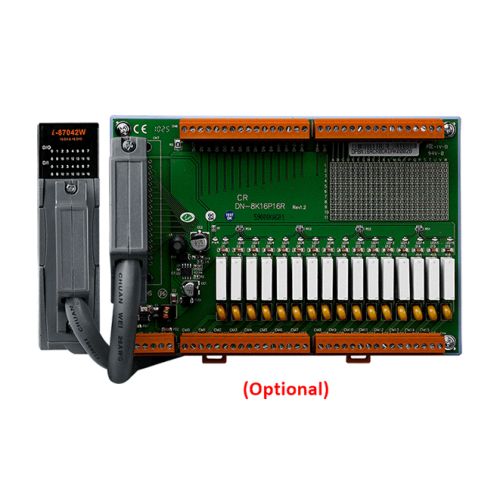

I-87042W-G CR ICP DAS Digital IO Modules

• Digital Input for Sink Type or Source Type.
• Digital Outputs for Sink Type.
• Power On Value Setting.
• Safe Value Setting.
• Photo Couple Isolation.
• 4KV ESD Protection.
• 3750 VDC Intra-module Isolation.
• RoHS Compliance.
• A Wide Range of Operating Temperature: -25 ℃ ~ +75 ℃

I-87042W offers 16 channels for digital input and 16 channels for digital output.Each of which features Photo-couple isolation.I-87042W supports sink type output with short-circuits protection. There are option for power on value and safe value for your consideration. About Input, you can chose sink type or source type input by wire connection. All channels are able to be used as 16-bit counter. I-87042W also has 32 LED indicators for channel status. 4KV ESD protection and 3750VDC intra-module isolation are standard.

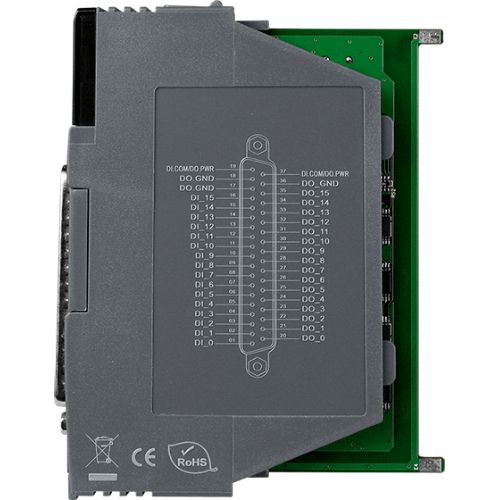

Digital Input

Input Channels: 16 (Sink/Source)
Input Type: One common for all Inputs
On Voltage Level: +3.5 V ~ 30 V
Off Voltage Level: +2 V max
Input Impedance: 3K Ohms
Intra-module Isolation, Field to Logic: 3750 VDC
4KV ESD Protection: Contact for each channel

Digital Output

Output Channels: 16 (Sink)
Output Type: Open-collector
Max Load Current: 100 mA/Channel
Load Voltage: 5 VDC ~ 30 VDC
Intra-module Isolation, Field to Logic: 3750 VDC
4KV ESD Protection: Contact for each channel

Watchdog

Dual Watchdog: Yes, Module(1.6 sec) and Communication(Programable)
Safe Value(When Host Fail or Communication Fail): Yes
Power ON Preset Value: Yes

LED Display

1 LED as Power Indicator
32 LEDs as Digital Input and Output Indicators

Power

Power Consumption: 0.25A @ 5V = 1.25W ,+/- 5% For Hardware

Environment

Operating Temperature: -25 ~ 75 °C
Storage Temperature: -30 ~ 75 °C
Humidity: 5 ~ 95% RH, non-condensing

Dimensions

30 mm x 85 mm x 115 mm (W x L x H)
