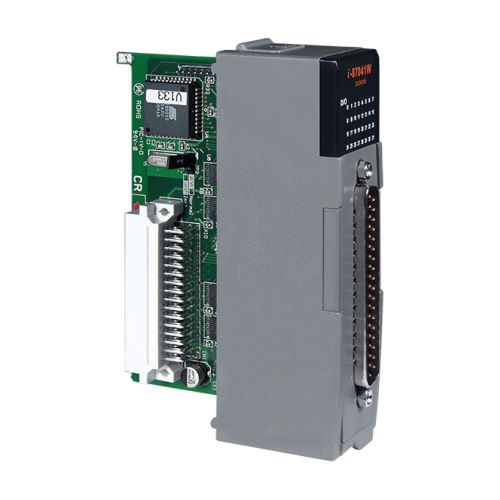

I-87041W-G CR ICP DAS Digital IO Modules

Digital Output

Output Channels: 32 (Sink)
Output Type: Isolated Open-collector
Max Load Current: 100 mA/Channel
Load Voltage: +5 VDC ~ +30 VDC
Intra-module Isolation, Field to Logic: 3750 Vrms
4KV ESD Protection: 4 kV Contact for Each Terminal

Watchdog

Dual Watchdog: Yes, Module(1.6 sec) and Communication(Programable)
Safe Value(When Host Fail or Communication Fail): Yes
Power ON Preset Value: Yes

LED Display

1 LED as Power/ Communication Indicator
32 LEDs as Digital Output Indicators

Power

Power Consumption: 0.7 W max.

Environment

Operating Temperature: -25 °C ~ 75 °C
Storage Temperature: -30 °C ~ 75 °C
Humidity: 5% ~ 95% RH, non-condensing

Dimensions

30 mm x 85 mm x 115 mm(W x L x H)
