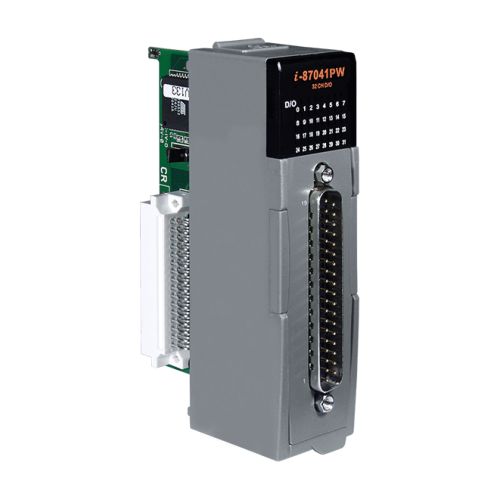

I-87041PW-G CR
32-ch Isolated Digital output (Sink, NPN, 5~50 VDC) Module with Self Protection Includes CA-4002F (DB37 connector Female with plastic cover)
The I-87041W/I-87041PW module offers 32 Digital Output channels, each of which features Photocouple isolation and supports sink-type output using an open collector. The I-87041W/I-87041PW includes 32 LED indicators that can be used to monitor the status of the Digital Output channels, and options are available for confi guring both power-on and safe values. 4 kV ESD protection and 3750 Vrms intra-module isolation is provided as standard. The I-87041W/I-87041PW can be paired with a daughterboard, such as the DN-37-381-A for easy wiring, or the DN-8K32R for relay output.
The I-87041PW integrates over-current, over-voltage and short-circuit functionality. ICP DAS recommends selecting either the "PW" version of the digital output module for industrial use.
I-87041PW-G CR: 32-channel Sink-type Open Collector Isolated Self Protected Digital Output Module using the DCON Protocol (Gray Cover) (RoHS)
- 32-channel Open Collector Output
- Sink-type Digital Output
- Short circuit protection, Overvoltage Protection and Overload Protection for I-87041PW
- 4 kV ESD Protection
- 3750 Vrms Intra-module Isolation
- Configurable Safe Value
- RoHS Compliant
- Wide Operating Temperature Range: -25 to +75°C
Digital Output
Channels: 32
Type: Open Collector
Sink/Source (NPN/PNP): Sink
Load Voltage: +5 VDC ~ +50 VDC
Max. Load Current: 200 mA/CHANNEL
Output Type: Open Collector
Overvoltage Protection: 60 VDC
Overload Protection: 1.1 A
Short Circuit Protection: Yes
Power-on Value: Yes
Safe Value: Yes
Communication
Interface: RS-485
Format: N, 8, 1
Baud Rate: 1200 to 115200 bps
Protocol: DCON
Dual Watchdog: Yes, Module (1.6 Seconds), Communication (Programmable)
LED Indicators/Display
System LED Indicator: Yes, 1 as Power/Communication Indicator
I/O LED Indicators: 32 as Digital Output Indicator
Isolation
Intra-module Isolation, Field-to-Logic: 3750 Vrms
EMS Protection
ESD (IEC 61000-4-2): ± 8 kV Contact for each Terminal - ±16 kV Air for Random Point
Power
Power Consumption: 1.7 W Max.
Mechanical
Dimensions (L x W x H): 114 mm x 30 mm 85 mm
Environment
Operating Temp.: -25 to +75°C
Storage Temp.: -40 to +85°C
Humidity: 10 to +95% RH, non-condensing
