I-87041 CR ICP DAS Digital IO Modules

I-87041 CR ICP DAS

I-87041 CR ICP DAS

I-87041 CR

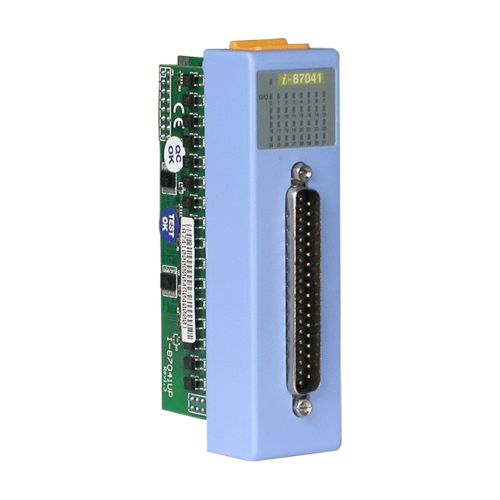

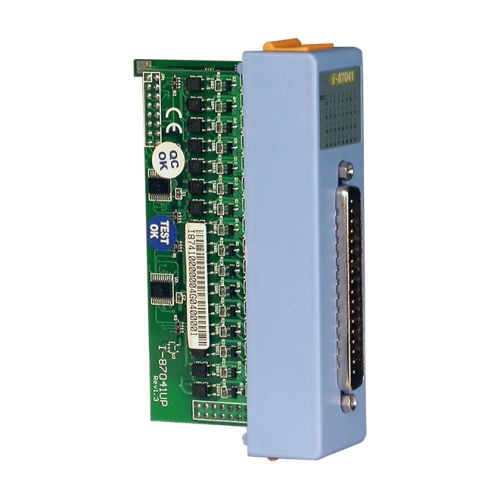

32-ch Isolated Digital output (5~30 VDC) Module

Quantity:

Price

€ 142,19

(VAT excluded)

€ 173,47(VAT included)

Prezzo di 1 pz. iva (22%) inclusa: € 173,47

Availability: 15 business days

SKU: 3150

Model: I-87041 CR

I-87041 CR technical sheet

I-87041 CR datasheet

I-87041 CR scheda prodotto

Print Product Sheet

Need Help?

Write us
an email

Call us
051 6604005
Share

Digital Output

Output Channels: 32 (Sink)
Output Type: Isolated Open-collector
Max Load Current: 100 mA/ Channel
Load Voltage: 5Vdc to 30Vdc
Intra-module Isolation, Field to Logic: 3750Vrms

LED Display

1 LED as Power/ Communication Indicator
32 LEDs as Digital Output Indicators

Power

Power Consumption: 1.5W

Environment

Operating Temperature: -25 to 75 °C
Storage Temperature: -30 to 75 °C
Humidity: 5 to 95% RH, non-condensing

Dimensions

30mm x 72mm x 114mm(W x L x H)
