features and benefits

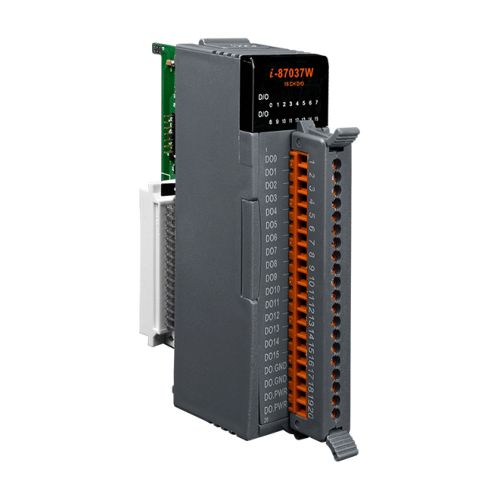

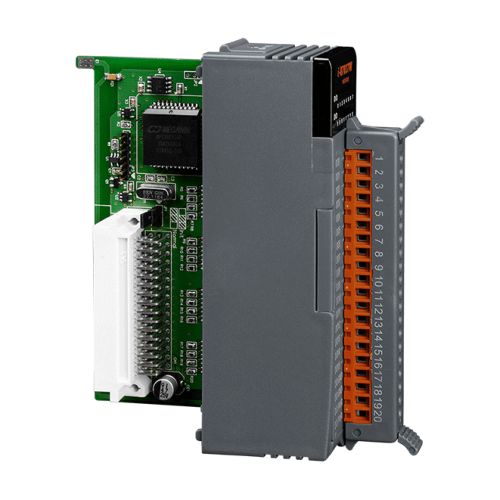

The I-87037W provides 16 channels for digital output, each of which features photo couple isolation.
The I-87037W supports source type output with short circuit protection and each channel can drive 700mA load.
There are options for configuring power-on and safe digital output values.
4 kV ESD protection and 3750 VDC intra-module isolation are also provided to enrich the noise protection ability for industrial environment.
- Source Type Digital Outputs
- Photo Couple Isolation
- Dual Watchdog
- Power On Value Setting
- Safe Value Setting
- Short Circuit Protection
specifications
CPU Module| Watchdog Timer | Yes, Module (1.6 Seconds), Communication (Programmable) |
|---|
Isolation| Intra-module Isolation | 3750 VDC |
|---|
LED Indicators| Status | 1 x Power and Communication | 16 x I/O |
|---|
Digital Output| Channels | 16 |
|---|
| Type | Open Emitter |
|---|
| Sink/Source (NPN/PNP) | Source (PNP) |
|---|
| Load Voltage | +10 VDC ~ +40 VDC |
|---|
| Load Current | 700 mA per channel |
|---|
| Overvoltage Protection | 47 VDC |
|---|
| Overload Protection | Yes |
|---|
| Short-circuit Protection | Yes |
|---|
| Power on Value | Yes, Programmable |
|---|
| Safe Value | Yes, Programmable |
|---|
COM Ports| Ports | 1 x RS-485 |
|---|
| Baud Rate | 1200 ~ 115200 bps |
|---|
| Data Format | N, 8, 1 |
|---|
| Protocol | DCON |
|---|
Power| Consumption | 0.41 W Max. |
|---|
Mechanical| Dimensions (mm) | 30 x 102 x 115 (W x L x H) |
|---|
Environment| Operating Temperature | -25 ~ +75 °C |
|---|
| Storage Temperature | -40 ~ +85 °C |
|---|
| Humidity | 10 ~ 90% RH, Non-condensing |
|---|
