features and benefits

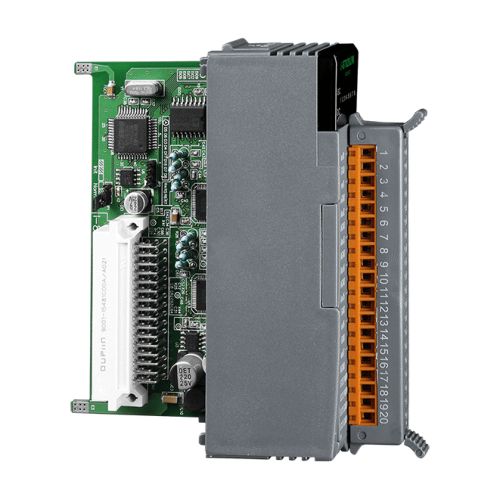

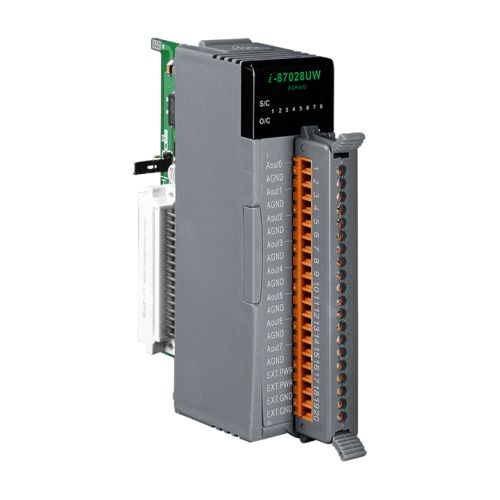

The I-87028UW is a source type analog output module that includes 8 single-ended analog output channels, and allows a programmable output range on all analog outputs channels(0 ~ 5 V, +/-5 V, 0 ~ 10 V, +/-10 V, +4 ~ +20 mA or 0 ~ +20 mA).
Each analog output channel can be configured for an individual range and provides an RF immunity level matching that defined by the IEC 61000-4-3 standard.
Voltage and current outputs are jumper selectable, and the module also features per-channel open wire detection for +4 ~ +20 mA outputs, together with 4 KV ESD protection as well as 2500 VDC intra-module isolation.
Options for configuring power-on and safe values are also included.
- 8-channel Voltage or Current Output
- Jumper Selectable Voltage or Current Output
- Individual Channel Configuration
- Open Wire Detection for Current Output
- Short Circuit Protection
- Power-on Value
- Safe Value
specifications
CPU Module| Watchdog Timer | Yes, Module (1.6 Seconds), Communication (Programmable) |
|---|
Isolation| Intra-module Isolation | 2500 VDC |
|---|
EMS Protection| ESD (IEC 61000-4-2) | ± 4 kV Contact for Each Terminal | ±8 kV Air for Random Point |
|---|
| RS Immunity (IEC 61000-4-3) | 3 V/m, 80 MHz ~ 1 GHz |
|---|
LED Indicators| Status | 1 x Power and Communication | 8 x O/C | 8 x S/C |
|---|
Analog Output| Channels | 8 Source |
|---|
| Type | Voltage | Current |
|---|
| Range | 0 ~ +5 VDC, ±5 VDC, 0 ~ +10 VDC, ±10 VDC, | 0 ~ +20 mA, +4 ~ +20 mA |
|---|
| Resolution | 16-bit |
|---|
| Accuracy | ±0.02% of FSR |
|---|
| Zero Drift | ±0.2 ΩV/°C |
|---|
| Span Drift | ±20 ppm/°C |
|---|
| Short Circuit Protection | 0 ~ +5 VDC, ±5 VDC, 0 ~ +10 VDC, ±10 VDC |
|---|
| DA Output Response Time | 10 ms per channel |
|---|
| Programmable Output Slope | Voltage: 0.0625 ~ 512 V/Second | Current: 0.125 ~ 1024 mA/Second |
|---|
| Open Wire Detection | +4 ~ +20 mA; 0 ~ 20 mA |
|---|
| Current Load Resistance | 1000 Ω |
|---|
| Individual Channel Configuration | Yes |
|---|
| Power-on Value | Yes |
|---|
| Safe Value | Yes |
|---|
COM Ports| Ports | 1 x RS-485 |
|---|
| Baud Rate | 1200 ~ 115200 bps |
|---|
| Data Format | N, 8, 1 |
|---|
| Protocol | DCON |
|---|
Power| Consumption | 0.9 W Max. |
|---|
Mechanical| Dimensions (mm) | 31 x 81 x 114 (W x L x H) |
|---|
Environment| Operating Temperature | -25 ~ +75 °C |
|---|
| Storage Temperature | -40 ~ +85 °C |
|---|
| Humidity | 10 ~ 95% RH, Non-condensing |
|---|
