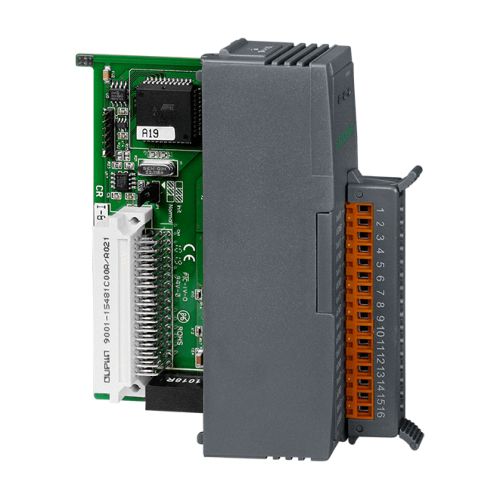

I-87024RW-G CR
4-ch Analog output Module with RF Immunity
- 4-channel Analog Output
- 4 kV ESD Protection
- 3V/m Radiated Protection
- Dual Watchdog
- Power On Value Setting
- Safe Value Setting
- 3000 VDC Intra-Module Isolation, Field to Logic
- A Wide Range of Operating Temperature: -25 °C ~ 75 °C
- RoHS Compliance
I-87024RW is a serial interface and 4-channel analog output module. The programmable analog outputs are 14-bit resolution and offer 0 ~ 5 V, +/-5 V, 0 ~ 10 V, +/-10 V, 0 ~ 20mA, and 4 ~ 20 mA. I-87024RW improves better output quality in radiate environment.
Analog Output
Output Channels: 4
Output Type: 0 ~ +5 V, +/- 5 V, 0 ~ +10 V, +/- 10 V, 0 ~ +20 mA, +4 ~ +20 mA
Resolution: 14-bit
Accuracy: +/- 0.1% of FSR
Zero Drift Voltage: +/-30μV/ °C
Current: +/-0.2μA/ °C
Span Drift: +/- 20 ppm/°C
DA Output Response Time: 10 ms per channel
Programmable Output Slope:
0.125 to 2048 mA/ second
0.0625 to 1024 V/ second
Voltage Output Capability: 10 V@20 mA
Current Load Resistance: External +24V: 1050 Ohms
Power-Up and SafeValue: Yes
Intra-module Isolation, Field to Logic: 3000 VDC
Watchdog
Dual Watchdog: Yes, Module(1.6 sec) and Communication(Programable)
Safe Value (When Host Fail or Communication Fail): Yes
Power ON Preset Value: Yes
LED Display
1 LED as Power/Communication Indicator
Power
Power Consumption:
Typical: 1.1 W
Maximum 3.2 W (4 Channels output 20 mA at 10 V)
EMS Protection
ESD (IEC 61000-4-2): 4 kV contact for each channel
RS (IEC 61000-4-3) 5V/m, 80 MHz ~ 1 GHz
Environment
Operating Temperature: -25 ~ +75 °C
Storage Temperature: -40 ~ +85 °C
Humidity: 10 ~ 90% RH, non-condensing
Dimensions
30mm x 102mm x 115mm (W x L x H)
