features and benefits
The I-87024DW is a serial interface and 4-channel analog output module.
The programmable analog outputs are 14-bit resolution and support an output range of 0 ~ 5 V, ±5 V, 0 ~ 10 V, ±10 V, 0 ~ +20 mA, or +4 ~ +20 mA.
- 4-channel Analog Output

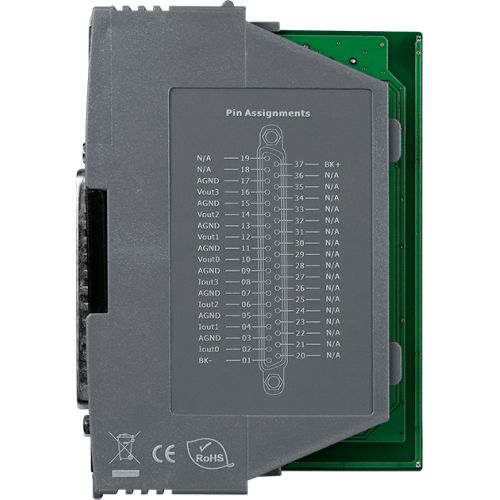

- D-Sub 37-Pin Connector
- Dual Watchdog
- Configurable Power-on Value
- Configurable Safe Value
- Open Daughter Board Detection
- RF Immunity
specifications
CPU Module| Watchdog Timer | Yes, Module (1.6 Seconds), Communication (Programmable) |
|---|
Isolation| Intra-module Isolation | 3000 VDC |
|---|
EMS Protection| ESD (IEC 61000-4-2) | ± 4 kV Contact for Each Terminal | ±8 kV Air for Random Point |
|---|
| RS Immunity (IEC 61000-4-3) | 3 V/m, 80 MHz ~ 1 GHz |
|---|
LED Indicators| Status | 1 x Power and Communication | 16 x I/O |
|---|
Analog Output| Channels | 4 Sink |
|---|
| Type | Voltage | Current |
|---|
| Range | 0 ~ +5 VDC, ±5 VDC, 0 ~ +10 VDC, ±10 VDC, 0 ~ +20 mA, +4 ~ +20 mA |
|---|
| Resolution | 14-bit |
|---|
| Accuracy | ±0.1% of FSR |
|---|
| Zero Drift | Voltage: ±30 μV/°C | Current: ±0.2 μA/°C |
|---|
| Span Drift | ±20 ppm/°C |
|---|
| Short Circuit Protection | Yes |
|---|
| DA Output Response Time | 10 ms per channel |
|---|
| Programmable Output Slope | Voltage: 0.0625 ~ 1024 V/Second | Current: 0.125 ~ 2048 mA/Second |
|---|
| Open Wire Detection | Yes |
|---|
| Current Load Resistance | External +24 VDC @ 1050 Ω |
|---|
| Power-on Value | Yes |
|---|
| Safe Value | Yes |
|---|
| Open Daughter Board Detection | Yes |
|---|
COM Ports| Ports | 1 x RS-485 |
|---|
| Baud Rate | 1200 ~ 115200 bps |
|---|
| Data Format | N, 8, 1 |
|---|
| Protocol | DCON |
|---|
Power| Consumption | 1.3 W Typical | 3.1 W Max. |
|---|
Mechanical| Dimensions (mm) | 30 x 85 x 115 (W x L x H) |
|---|
Environment| Operating Temperature | -25 ~ +75 °C |
|---|
| Storage Temperature | -40 ~ +85 °C |
|---|
| Humidity | 10 ~ 95% RH, Non-condensing |
|---|
