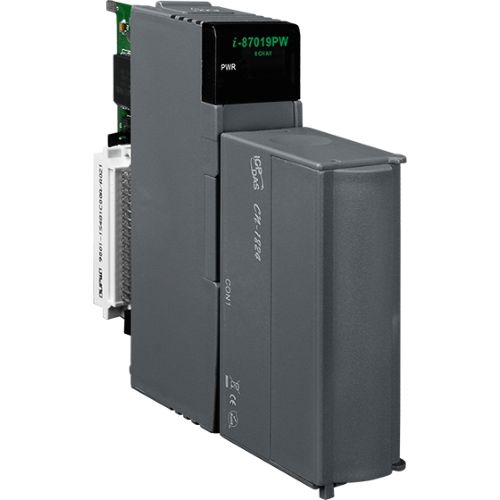

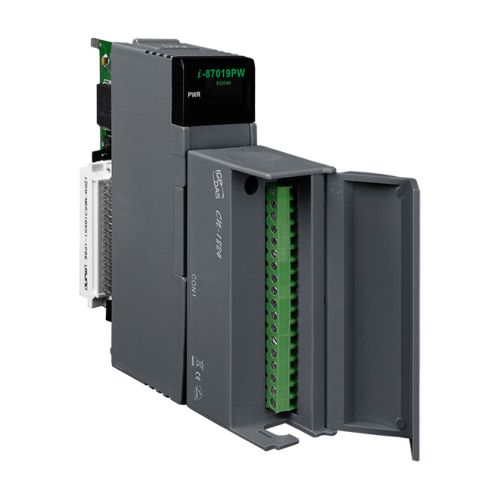

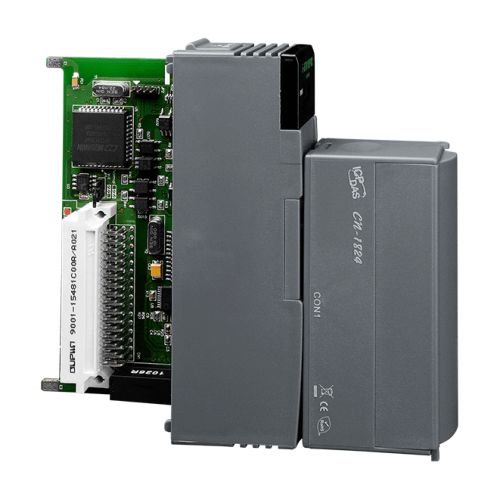

I-87019PW-G/S CR
8-ch Universal Analog input Module
- 8-channel Analog Input
- Individual Channel Configuration
- Open Thermocouple Detection
- Temperature Output Consistency
- Stable Temperature Output in the Field
- 240 Vrms Overvoltage Protection
- Jumper Selectable Voltage or Current Input
- 4 kV ESD Protection
- Dual Watchdog
- 3000 VDC Intra-Module Isolation, Field-to-Logic
- Wide Operating Temperature Range: -25 °C ~ +75 °C
- RoHS Compliant
The I-87019PW is a 8-channel universal analog input module with an RS-485 interface that is a specially designed for extremely accurate thermocouple measurement and features automatic cold-junction compensation for each channel to ensure temperature output consistency and stable temperature output in the field. The innovative design of the enhanced model ensures that thermocouple measurement is more accurate than with the earlier design. Besides the thermocouple inputs, the I-87019PW also supports voltage and current inputs. The voltage input range can be form +/-15 mV to +/-10 V, and the current input range can be either 4 ~ 20 mA, 0 ~ 20 mA, or +/- 20 mA. Up to 10 analog inputs of different types can be connected to a single module. Overvoltage protection of up to 240 Vrms is provided. The module also features per-channel open wire detection for thermocouple and 4 ~ 20 mA inputs.
Analog Input
Input Channels: 8 Differential
Input Type:
+/-15 mV, +/-50 mV, +/-100 mV, +/-150 mV
+/-500 mV, +/-1 V, +/-2.5 V, +/-5 V,+/-10 V
-20 mA ~ +20 mA, 0 ~ 20 mA, 4 ~ 20 mA (Jumper Selectable)
Thermocouple Type: (J, K, T, E. R. S, B, N, C, L, M, and LDIN43710)
Resolution: 16-bit
Sampling Rate: 10 Samples/Second (Total)
Accuracy: +/- 0.1%
Zero Drift: +/- 20 μV/°C
Span Drift: +/- 20 μV/°C
Common Mode Rejection: 86 dB
Normal Mode Rejection: 100 dB
Input Impedance: Voltage Input: >400 kΩ, Current Input: 125 Ω
Individual Channel Configuration: Yes
Overvoltage Protection: 240 Vrms
Open Thermocouple Detection: Yes, (Software Selectable)
ESD Protection: +/- 4 kV, Contact for Each Terminal
Intra-module Isolation, Field-to-Logic: 3000 VDC
Interface
Interface: RS-485
Format: N, 8, 1; N, 8, 2; E, 8, 1; O, 8, 1
Baud Rate: 1200 ~ 115200 bps
Watchdog
Dual Watchdog: Yes, Module (1.6 seconds) and Communication (Programable)
LED Display
1 LED as Power/Communication Indicator
Power
Power Consumption: Maximum: 1.3 W
Environment
Operating Temperature: -25 °C ~ +75 °C
Storage Temperature: -40 °C ~ +85 °C
Humidity: 10 ~ 90% RH, Non-condensing
Dimensions
I-87019PW: 30 mm x 86 mm x 114 mm (W x L x H)
CN-1824: 29 mm x 43 mm x 83 mm (W x L x H)
