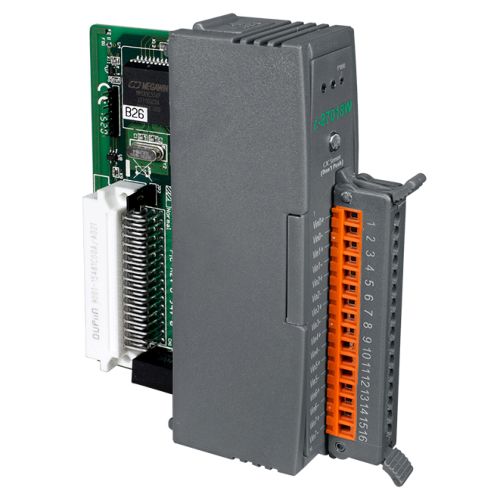

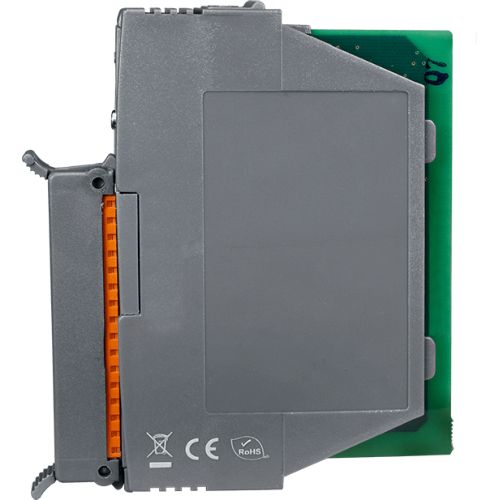

I-87018W-G CR ICP DAS Thermocouple IO Modules

Analog Input

Input Channels: 8 Differential
Input Type:
      +/- 15mV, +/- 50mV, +/- 100mV
      +/- 500mV, +/- 1V, +/- 2.5V
      -20mA ~ +20mA(Requires Optional External 125 Ohm Resistor)
      Thermocouple(J, K, T, E. R. S, B, N, C, L, M, LDIN43710)
Resolution: 16-bit
Sampling Rate: 10 Samples/ sec (Total)
Accuracy: +/- 0.1% of FSR
-3dB BandWidth: 15.7Hz
Zero Drift: +/- 0.5μV °C
Span Drift: +/- 25 μV/ °C
Common Mode Rejection: 150 dB
Normal Mode Rejection: 100 dB
Input Impedance: 20M Ohms
Open Thermocouple Detection: No
Overvoltage Protection: -35V to +35V
Intra-module Isolation, Field to Logic: 3000VDC

Watchdog

Dual Watchdog: Yes, Module(1.6 sec) and Communication(Programable)

LED Display

1 LED as Power/ Communication Indicator

Power

Power Consumption: Maximum: 0.8W

Environment

Operating Temperature: -25 to 75 °C
Storage Temperature: -30 to 75 °C
Humidity: 5 to 95% RH, non-condensing

Dimensions

30mm x 102mm x 115mm(W x L x H)
