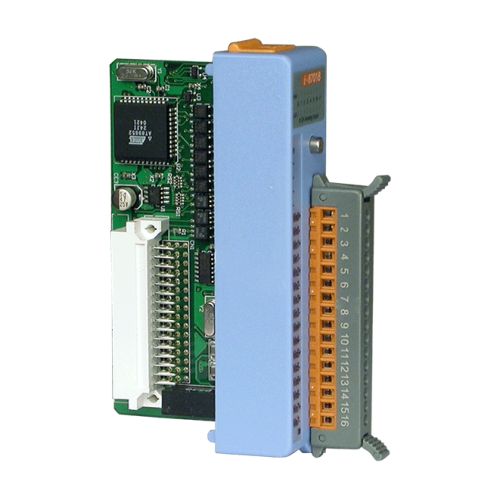

I-87018 CR ICP DAS Thermocouple IO Modules

I-87018 CR ICP DAS

I-87018 CR

8-ch Thermocouple Input Module



€ 217,43

(VAT excluded)

€ 265,26(VAT included)

Prezzo di 1 pz. iva (22%) inclusa: € 265,26

Availability: 15 business days

SKU: 3128

Model: I-87018 CR

Need Help?

Analog Input

Input Channels: 8 Differential
Input Type:
        +/- 15mV, +/- 50mV, +/- 100mV
        +/- 500mV, +/- 1V, +/- 2.5V
        -20mA ~ +20mA(Requires Optional External 125 Ohm Resistor)
        Thermocouple(J, K, T, E. R. S, B, N, C, L, M, LDIN43710)
Resolution: 16-bit
Sampling Rate: 10 Samples/ sec (Total)
Accuracy: +/- 0.1% of FSR
-3dB BandWidth: 15.7Hz
Zero Drift: +/- 0.5μV °C
Span Drift: +/- 25 μV/ °C
Common Mode Rejection: 150 dB
Normal Mode Rejection: 100 dB
Input Impedance: 20M Ohms
Open Thermocouple Detection: No
Overvoltage Protection: -35V to +35V
Intra-module Isolation, Field to Logic: 3000VDC

LED Display

1 LED as Power/ Communication Indicator
16 LEDs as High/ Low Alarm Signals


Power Consumption: Maximum: 1.1W


Operating Temperature: -25 to 75 °C
Storage Temperature: -30 to 75 °C
Humidity: 5 to 95% RH, non-condensing


30mm x 88mm x 115mm(W x L x H)
