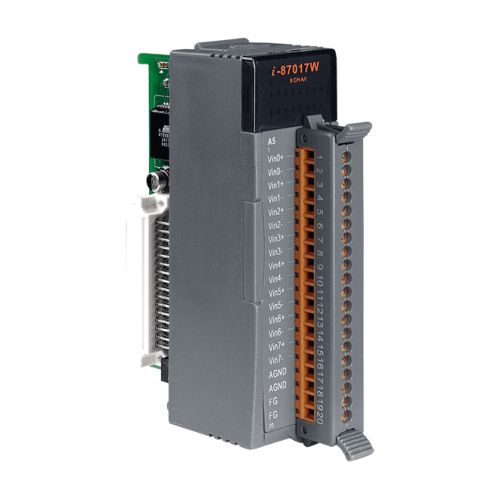

I-87017W-A5-G CR ICP DAS Analog IO Modules

Analog Input

Input Channels: 8 Differential
Input Type: +/-50V, +/-150V
Resolution: 16-bit (Normal Mode) / 12-bit (Fast Mode)
Sampling Rate:
      Normal Mode: 16-bit,10 Samples/sec (Total)
      Fast Mode: 12-bit,50 Sample/sec(Total)
Accuracy:
      Normal Mode: +/- 0.1% of FSR
      Fast Mode: +/- 0.25% of FSR
-3dB BandWidth: 15.7Hz
Zero Drift: +/- 20μV/ °C
Span Drift: +/- 25 μV/ °C
Common Mode Rejection: 86 dB
Normal Mode Rejection: 100 dB
Input Impedance: 290K Ohms
Overvoltage Protection: -200V to +200V
4KV ESD Protection: Yes, Contact for each terminal.
Intra-module Isolation, Field to Logic: 3000 VDC

Watchdog

Dual Watchdog: Yes, Module(1.6 sec) and Communication(Programable)

LED Display

1 LED as Power/ Communication Indicator

Power

Power Consumption: Maximum: 1.3W

Environment

Operating Temperature: -25 to 75 °C
Storage Temperature: -30 to 75 °C
Humidity: 5 to 95% RH, non-condensing

Dimensions

30mm x 102mm x 115mm(W x L x H)
