features and benefits

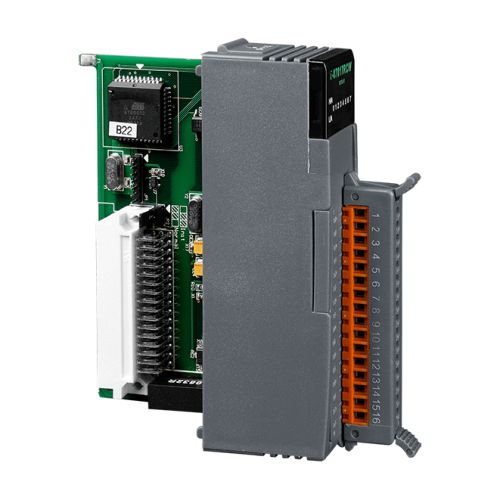

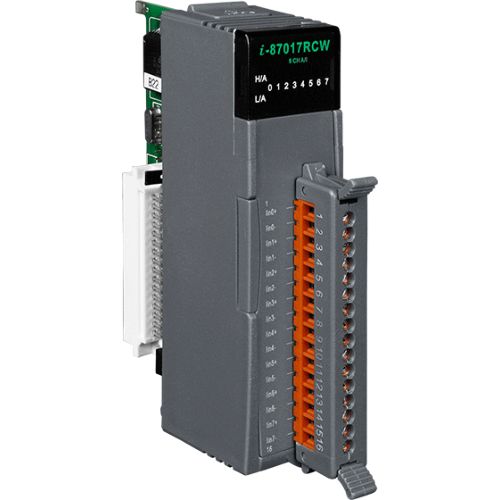

The I-87017RCW is an 8-channel current input module that is specifically designed to measure current only.
Its user-friendly design saves both time and effort when measuring a current thanks to a built-in resistor, meaning that current can now be measured directly.
The I-87017RCW is much more suitable for critically harsh environments since it also has 4 kV ESD protection and +/-200 VDC common voltage as current input protection, and also features 3000 VDC intra-module isolation together with open wire detection for +4 to +20 mA input.
The sampling rate for the I-87017RCW is adjustable, meaning that either fast mode or normal mode can be selected.
- 8 Current Input Channels
- ±200 VDC Common Voltage Protection
- Supports both Fast and Normal Mode Sampling Rates
- Overcurrent Protection
- Built-in Resistor to simplify Current Measurement
- Open Wire Detection for +4 to +20 mA input
specifications
CPU Module| Watchdog Timer | Yes, Module (1.6 Seconds), Communication (Programmable) |
|---|
Isolation| Intra-module Isolation | 3000 VDC |
|---|
EMS Protection| ESD (IEC 61000-4-2) | ± 4 kV Contact for Each Terminal | ±8 kV Air for Random Point |
|---|
LED Indicators| Status | 1 x Power and Communication | 16 x I/O |
|---|
Analog Input| Channels | 8 |
|---|
| Type | Current |
|---|
| Range | 0 ~ +20 mA, +4 ~ +20 mA, -20 mA ~ +20 mA (No External Restistor Reguired) |
|---|
| Resolution | 16-bit |
|---|
| Accuracy | Normal Mode: ±0.1% of FSR | Fast Mode: ±0.5% of FSR |
|---|
| Sampling Rate | Normal Mode: 10 Hz | Fast Mode: 60 Hz |
|---|
| Bandwidth | 15.7 Hz |
|---|
| Input Impedance | 125 Ω |
|---|
| Common Mode Rejection | 86 dB |
|---|
| Normal Mode Rejection | 100 dB |
|---|
| Overvoltage Protection | -200 VDC ~ +200 VDC |
|---|
| Overcurrent Protection | Yes, 50 mA at 110 VDC |
|---|
| Open Wire Detection | Yes, for +4 ~ +20 mA |
|---|
| Zero Drift | ±20 μV/°C |
|---|
| Span Drift | ±25 ppm/°C |
|---|
COM Ports| Ports | 1 x RS-485 |
|---|
| Baud Rate | 1200 to 115200 bps |
|---|
| Data Format | N, 8, 1 |
|---|
| Protocol | DCON |
|---|
Power| Consumption | 1.3 W Max. |
|---|
Mechanical| Dimensions (mm) | 30 x 102 x 115 (W x L x H) |
|---|
Environment| Operating Temperature | -25 ~ +75 °C |
|---|
| Storage Temperature | -40 ~ +85 °C |
|---|
| Humidity | 10 ~ 95% RH, Non-condensing |
|---|
