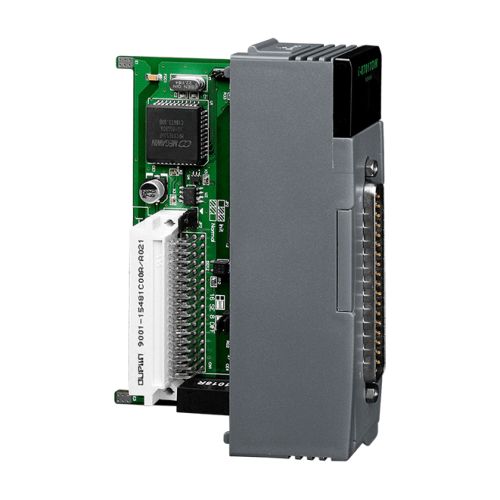

I-87017DW-G CR ICP DAS Analog IO Modules

• 8-channel Differential/16-channel Single-ended Analog Input
• D-Sub 37 Connector
• 4 kV ESD Protection
• Dual Watchdog
• 3000 VDC Intra-Module Isolation, Field to Logic
• A Wide Range of Operating Temperature: -25 °C~ 75 °C
• RoHS Compliance

I-87017DW is a serial interface and 8-channel Differential/16-channel Single-Ended analog input module. The analog input range is software selectable and supports +/-10V, +/-5V, +/-1V, +/-500mV, +/-150mV, and +/-20mA. Differential and Single-ended mode is selected by jumpers.

Analog Input

Input Channels: 8 Differential/16 Single-Ended
Input Type:
          +/-10 V, +/-5 V, +/-1 V, +/-500 mV, +/-150 mV,
          +4 ~ +20 mA , 0 ~ +20 mA, -20 mA ~ +20 mA(Only Differential Mode, Requires Optional External 125 Ohm Resisto
Resolution: 16-bit/12-bit
Sampling Rate:
          Normal Mode: 16-bit,10 Samples/Sec. (Total)
          Fast Mode: 12-bit, 60 Sample/Sec. (Total)
Accuracy:
          Normal Mode: +/- 0.1% of FSR
          Fast Mode: +/- 0.5% of FSR
-3dB Band Width: 15.7Hz
Zero Drift: +/- 20 μV/ °C
Span Drift: +/- 25 ppm/ °C
Common Mode Rejection: 86 dB
Normal Mode Rejection: 100 dB
Input Impedance: Differential Mode: >2M Ohms, Single-ended Mode: >1M Ohms
Overvoltage Protection: Differential Mode: 240 Vrms, Single-ended Mode: >120 Vrms
ESD Protection: 4 kV Contact for each terminal.
Open Daughter-Board Detection: Yes
Individual Channel Configuration: Yes

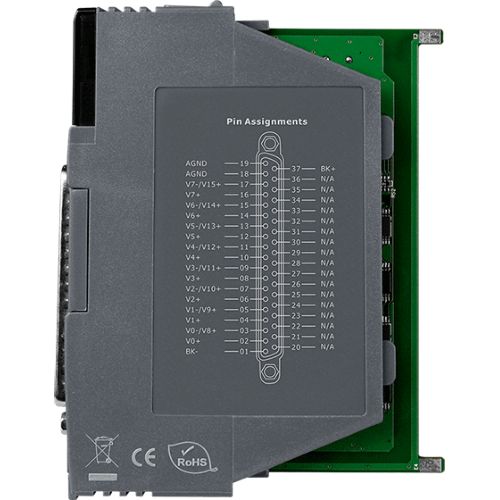

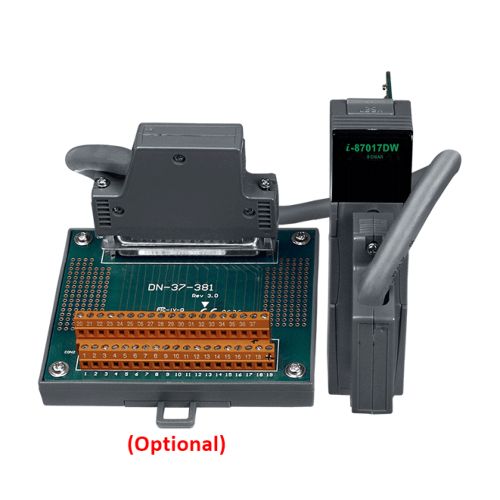

Connector: DB37
Intra-module Isolation, Field to Logic: 3000 VDC

Watchdog

Dual Watchdog: Yes, Module(1.6 sec) and Communication(Programable)

LED Display

1 LED as Power/Communication Indicator

Power

Power Consumption: Maximum: 1.4W

Environment

Operating Temperature: -25 ~ +75 °C
Storage Temperature: -30 ~ +80 °C
Humidity: 10 ~ 90% RH, non-condensing

Dimensions

30 mm x 102 mm x 115 mm(W x L x H)
