features and benefits

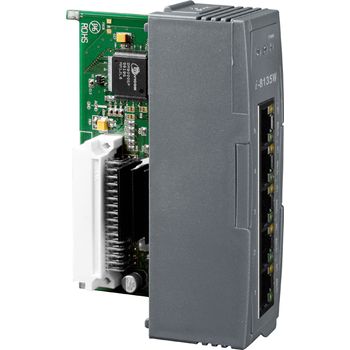

The I-8135W is a flexible and high performance five-port Ethernet switch module.

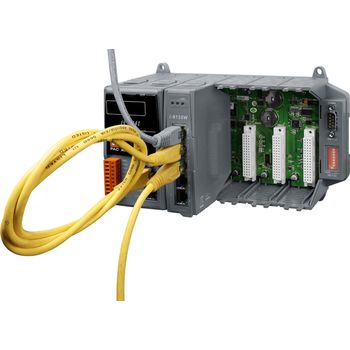

It can be installed in PAC (XPAC, WinPAC, LinPAC, iPAC, ViewPAC, .
.
.
) and directly gets power from the backplane.
An extra power adapter for an Ethernet switch is not need any more.
In your PAC solutions, if you want to expand Ethernet connection, I-8135W is good to replace regular Ethernet switchs to save installation space and power adapter.

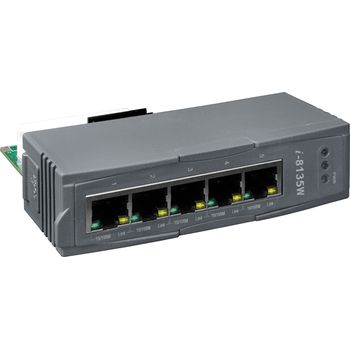

- 5-port RJ-45 Ethernet Switch
- Each port supports both 10/100 Mbps speed auto negotiation
- Full duplex IEEE 802.3x and half duplex backpressure ow control
- Automatic MDI/MDI-X crossover for plug-and-play
- 3.2 Gbps high performance memory bandwidth
- 512 Kbit frame buer memory
specifications

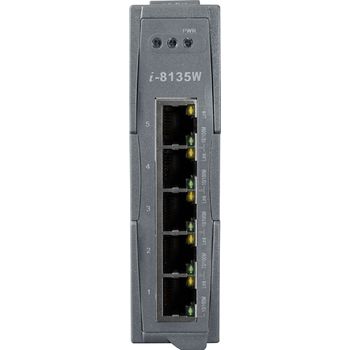

LED Indicators| Status | Power, Link/Act, 10/100M |
|---|
Ethernet| Standards | IEEE 802.3, 802.3u, 802.3x |
|---|
| Processing Type | Store & forward, wire speed switching |
|---|
| MAC Table | 1024 |
|---|
| Memory Bandwidth | 3.2 Gbps |
|---|
| Frame Buffer Memory | 512 Kbit |
|---|
| Flow Control | IEEE802.3x flow control, back pressure flow control |
|---|
Mechanical| Dimensions (mm) | 30 x 114 x 82 (W x L x H) |
|---|
Environment| Operating Temperature | -25 °C ~ +75 °C |
|---|
| Storage Temperature | -30 °C ~ +85 °C |
|---|
| Humidity | 5% ~ 90% RH, non-condensing |
|---|
