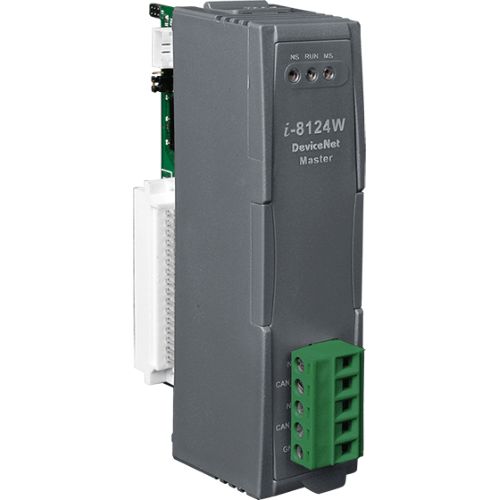

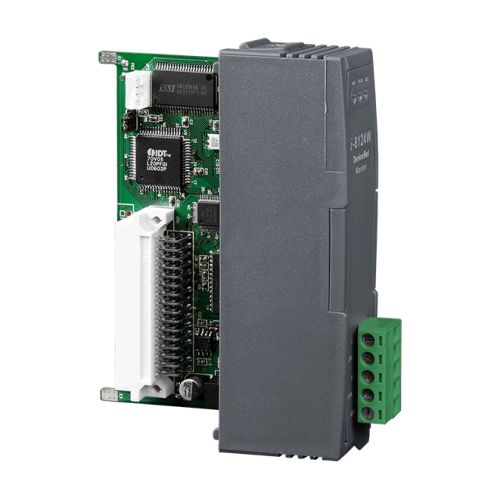

I-8124W-G CR ICP DAS DeviceNet

The I-8124W can represent an economic solution of DeviceNet application and be a DeviceNet
master device on the DeviceNet network. I-8124W supports Group 2 and UCMM functions
simultaneously. It can be installed in ViewPAC or WP-8000 series PAC. It is popularly applied in the
industrial automation, building automation, vehicle, and embedded control network. There is a
complete DeviceNet protocol firmware in the I-8124W. The users can easily access the slave device
via I-8124W in the ViewPAC and WP-8000 and need not to deal with the complex DeviceNet
protocol. The uses can use as easy as “Read/Write” functions to access slave I/O data.

• DeviceNet Version: Volume I & II, Release 2.0
• Programmable master MAC ID and baud rate.
• Baud Rate: 125k, 250k, 500k bps
• Support Group 2 and UCMM connection
• I/O Operating Modes: Poll, Bit-Strobe, Change of State /
• Cyclic
• I/O Length: max 512 input bytes and 512 output bytes
• per slave
• Slave Node: 63 nodes max
• Support auto-search slave device function.
• Support on-line adding and removing devices
• Support auto-detect Group 2 and UCMM device
• Auto-reconnect when the connection is broken
• Status LED: RUN, MS, NS

HARDWARE SPECIFICATIONS

Hardware
CPU: 80186, 80 MHz or compatible
SRAM/Flash/EEPROM: 512 KB / 512 KB / 16 KB
Watchdog: CPU built-in

CAN Interface
Controller: NXP SJA1000T with 16 MHz clock
Transceiver: NXP 82C250
Channel number: 1
Connector: 5-pin screwed terminal block (CAN_L, CAN_GND, CAN_H, N/A for others)
Baud Rate (bps): 125 k, 250 k, 500 k
Transmission Distance (m): Depend on baud rate (for example, max. 1000 m at 50 kbps )
Isolation: 3000 VDC for DC-to-DC, 2500 Vrms for photo-couple
Terminator Resistor: Switch for 120 Ω terminator resistor
Specification: ISO-11898-2, CAN 2.0A and CAN 2.0B
Protocol: DeviceNet Volumn I ver2.0, Volumn II ver2.0

LED
Round LED: NS LED, RUN LED, MS LED

Software
Driver: Windows CE5, Windows CE6
Library: For CE5: VB.Net, C#.Net, VC 2005 (with .Net Framework 2.0 or upper), and eVC++ 4.0
  For CE6: VB.Net, C#.Net, VC 2008 (with .Net Framework 3.5 or upper)

Power
Power Consumption: 2 W

Mechanism
Dimensions: 31mm x 115mm x 91mm (W x L x H)

Environment
Operating Temp.: -25 ~ 75 ℃
Storage Temp.: -30 ~ 80 ℃
Humidity: 10 ~ 90% RH, non-condensing
