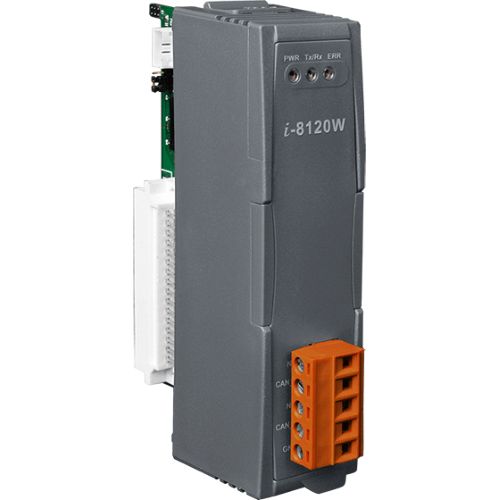

I-8120W-G CR ICP DAS CAN

The I-8120W has one CAN communication port with 5-pin screw terminal connector. It uses the NXP
SJA1000T and transceiver 82C250, which provide both CAN 2.0A and 2.0B specific, re-transmission
function, bus arbitration and error detection. Combining the benefits of PACs of ICP DAS without
increasing the CPU loading heavily, it could be a powerful multi CAN port programmable device
server by driving the program in the 186 CPU of the I-8120W. It can also communicate with other
kinds of communication interface, such as RS-232/RS-485/Ethernet ports to be a programmable
multi-interface device server.


Hardware Features

• 80186, 80MHz CPU inside
• SJA1000 CAN controller, 82C250 CAN transceiver
• Support CAN 2.0A and CAN 2.0B specification
• Built-in switch for120 Ω terminal resister
• Max CAN bus transmission speed up to 1M bps
• Max transmission distance over 1000m

Software Features

• Support hardware timestamp
• Dual port RAM communication mechanism
• 2048 CAN message reception buffer size
• Allow user-defined firmware
• Support user-defined baud rate
• Utility to update default firmware or download the
• user-defined firmware
• Utility tool for transmitting / receiving CAN messages
• Easy-to-use data logger for the diagnosis of CAN
• networks and for recording of the received data

Host Library

• Support WinPAC, ViewPAC and XPAC
• Provide eVC++4.0, VC6, VC++ 2005, C#.net 2005,
• VB.net 2005 demos and library
• Provide C/C++ demos and library for designing the
• user-defined firmware

HARDWARE SPECIFICATIONS

Hardware
CPU: 80186, 80 MHz or compatible
SRAM/Flash/EEPROM: 512 KB / 512 KB / 16 KB
DPRAM: 8 KB
Watchdog: Watchdog IC
ESD Protection: 2 kV class A

CAN Interface
Controller: NXP SJA1000T with 16 MHz clock
Transceiver: NXP 82C250
Connector: 5-pin screw terminal block (CAN_GND, CAN_L, CAN_SHLD, CAN_H, N/A)
Baud Rate (bps): 10 k, 20 k, 50 k, 125 k, 250 k, 500 k, 800 k, 1 M (allow user-defined baud rate)
Isolation: 3000 VDC for DC-to-DC, 2500 Vrms for photo-couple
Terminator Resistor: Switch for 120 Ω terminator resistor
Specification: ISO-11898-2, CAN 2.0A and CAN 2.0B

LED
Round LED: PWR LED, RUN LED, ERR LED

Software
Driver: I-8120W (for designing user-defined firmware), WinPAC, ViewPAC, XPAC, XPAC-CE6 (The XPAC series PAC only support one I-8120W)
Library: TC/BC/TC++/BC++, eVC++ 4.0, VC++ 2005, C#.net 2005, VB.net 2005

Power
Power supply: Unregulated +10 ~ +30 VDC
Protection: Power reverse polarity protection, Over-voltage brown-out protection
Power Consumption: 1.5 W

Mechanism
Dimensions: 31mm x 91mm x 115mm (W x L x H)

Environment
Operating Temp.: -25 ~ 75 ℃
Storage Temp.: -30 ~ 80 ℃
Humidity: 10 ~ 90% RH, non-condensing
