I-8114W-G CR ICP DAS RS232 Modules

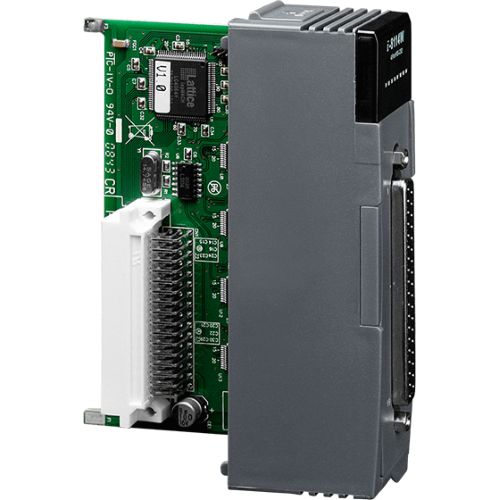

I-8114W-G CR

4-port Non-isolated RS-232 Module4-port Non-isolated RS-232 Module Includes CA-4002 (DB37 connector Male with plastic cover)



€ 136,94

(VAT excluded)

€ 167,07(VAT included)

Prezzo di 1 pz. iva (22%) inclusa: € 167,07

Availability: 15 business days

SKU: 118501

Model: I-8114W-G CR

Need Help?


  • Serial Port with +/-4 kV ESD Protection
  • Baud Rate of up to 115200 bps
  • Internal 128-byte Hardware FIFO for each Port
  • LED Indicators for TxD, RxD and Power Status


The I-8114W-G provides 4 non-isolated RS-232 serial ports, It is equipped with a 128-byte hardware FIFO for each port and offers speeds up to 115.2 kbps with support for full-duplex communication. In the harsh industrial environment, the onboard ESD protection devices can divert this potentially damaging charge away from sensitive circuitry and protect the I-8114W from permanent damage. The serial communication modules are designed for use with intelligent devices like bar code readers, serial printers, intelligent sensors, instrumentation equipment, computers, and almost any device with an RS-232 port.


EMS Protection

ESD (IEC 61000-4-2): ± 4 kV Contact for Each Terminal

LED Indicators

Status: 1 x Power and Communication
4 x COM Ports

COM Ports

Ports: 4 x RS-232
Baud Rate: 115200 bps Max.
Parity: None, Even, Odd, Mark, Space
Data Bit: 5, 6, 7, 8
Stop Bit: 1, 1.5, 2
FIFO Size: Internal 128 bytes for each port


Consumption: 1.25 W Max.


Dimensions (mm): 30 x 114 x 85 (W x L x H)


Operating Temperature: -25 ~ +75 °C
Storage Temperature: -40 ~ +85 °C
Humidity: 10 ~ 90% RH, Non-condensing
