I-8114iW-G CR ICP DAS RS232 Modules

I-8114iW-G CR ICP DAS

I-8114iW-G CR ICP DAS

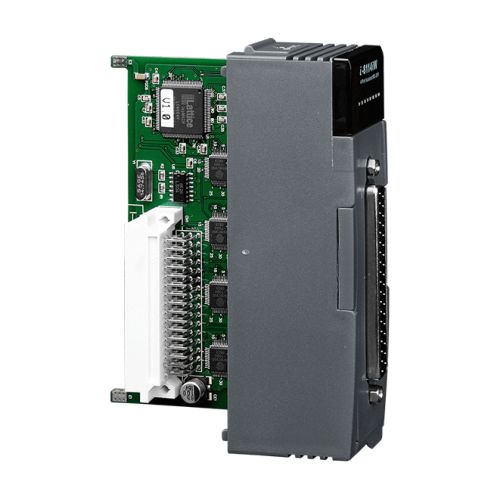

I-8114iW-G CR

4-port Isolated RS-232 Module Includes CA-4002 (DB37 connector Male with plastic cover)

Quantity:

Price

€ 174,55

(VAT excluded)

€ 212,95(VAT included)

Prezzo di 1 pz. iva (22%) inclusa: € 212,95

Availability: 15 business days

SKU: 118570

Model: I-8114iW-G CR

Need Help?


 Features

  • Serial Port with +/-4 kV ESD Protection
  • Baud Rate of up to 115200 bps
  • 2500 VDC Isolation
  • Internal 128-byte Hardware FIFO for each Port
  • LED Indicators for TxD, RxD and Power Status


Introduction

The I-8114iW-G provides 4 isolated RS-232 serial ports. It is equipped with a 128-byte hardware FIFO for each port and offers speeds up to 115.2 kbps with support for full-duplex communication. In the harsh industrial environment, the onboard ESD protection devices can divert this potentially damaging charge away from sensitive circuitry and protect the I-8114iW from permanent damage. The serial communication modules are designed for use with intelligent devices like bar code readers, serial printers, intelligent sensors, instrumentation equipment, computers, and almost any device with an RS-232 port.


Specifications

Isolation

Intra-module Isolation: 2500 VDC
EMS Protection:
ESD (IEC 61000-4-2): ± 4 kV Contact for Each Terminal
LED Indicators:
Status: 1 x Power and Communication
4 x COM Ports


COM Ports

Ports: 4 x RS-232
Baud Rate: 115200 bps Max.
Parity: None, Even, Odd, Mark, Space
Data Bit: 5, 6, 7, 8
Stop Bit: 1, 1.5, 2
FIFO Size: Internal 128 bytes for each port


Power

Consumption: 1.75 W Max.


Mechanical

Dimensions (mm): 30 x 114 x 85 (W x L x H)


Environment

Operating Temperature: -25 ~ +75 °C
Storage Temperature: -40 ~ +85 °C
Humidity: 10 ~ 90% RH, Non-condensing
