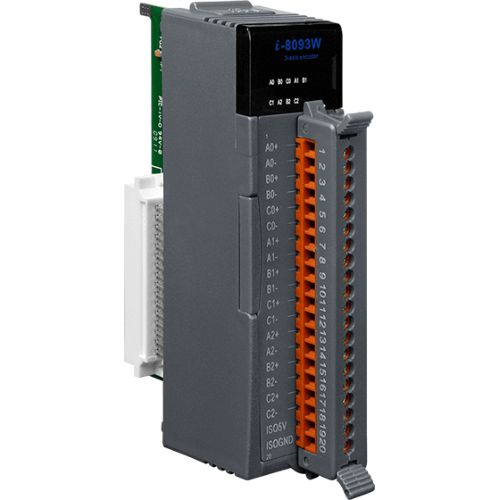

I-8093W-G CR, High-speed 3-axis Encoder Module
I-8093W-G CR
High-speed 3-axis Encoder Module
Free Shipping
Features
- 3-axis Encoder Inputs
- 1 MHz Input Rate for Quadrant Input Mode
- 4 MHz Input Rate for Pulse/Direction and cw/ccw Input Modes
- 32-bit Count Range
- 2500 VDC Optical Isolation
Introduction
I-8093W is a high-speed 3-axis encoder module. Its each axis can be independently confi gured as one of Quadrant, Pulse/Direction or CW/CCW input mode. The maximum input rate for Quadrant mode is 1 MHz, and for Pulse/Direction and CW/CCW modes is 4 MHz. The high-end specifi cations of I-8093W and complete software support make it ideal for wide range applications in position measurement of motion systems for industrial and laboratory environment.
Specifications
Isolation
Intra-module Isolation: 2500 VDC
EMS Protection
ESD (IEC 61000-4-2): ± 4 kV Contact for Each Terminal
LED Indicators
Status: 1 x Power and Communication
9 x Status
Encoder Input
No. of Axes: 3-axis
Resolution: 32-bit
Mode: 1. Quadrant Counting
2. CW/CCW
3. Pulse/Dir
Counting Rate: 1. Quadrant Counting: 1 MHz
2. CW/CCW: 4 MHz
3. Pulse/Dir: 4 MHz
Power
Consumption: 2 W Max.
Mechanical
Dimensions (mm): 30 x 115 x 102 (W x L x H)
Environment
Operating Temperature: -25 ~ +75 °C
Storage Temperature: -30 ~ +85 °C
Humidity: 5 ~ 90% RH, Non-condensing
