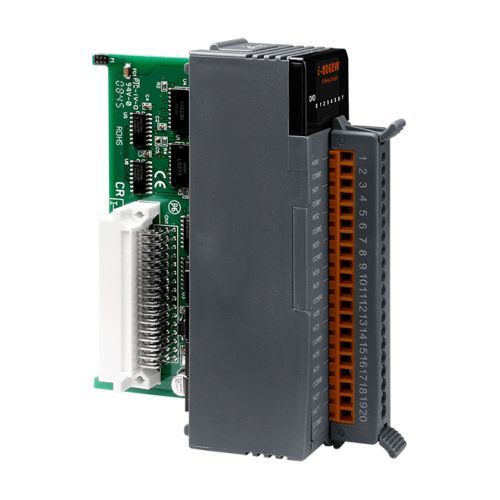

I-8068W-G CR ICP DAS Relay IO Modules

Digital Output

Output Channels: 8
Output Type:
      4 Form A Power Relays
      4 Form C Power Relays
Form A:
      Relay Contact Voltage Range:
          5A@250VAC
          5A@28VDC
Max. Operate Time: 15ms max
Max. Release Time: 4ms max
Relay Life:
      Mechanical life: 10 million operations. (no load)
      Electrical life: 100,000 operations (rated load)
Form C:
      Relay Contact Voltage Range:
          5A (NO) /3A (NC)@30VDC
          5A (NO) /3A (NC)@ 277VAC
Max. Operate Time: 10ms max
Max. Release Time: 5ms max
Relay Life:
      Mechanical life: 5 million ops. (no load)
      Electrical life: 100,000ops (rated load)
4KV ESD Protection: Contact for each channel

LED Display

1 LED as Power Indicator
8 LEDs as Power Relay Output Indicators

Power

Power Consumption: 0.5A @ 5V = 2.5W, +/- 5% For Hardware

Environment

Operating Temperature: -25 to 75 °C
Storage Temperature: -30 to 75 °C
Humidity: 5 to 95% RH, non-condensing

Dimensions

30mm x 102mm x 115mm (W x L x H)
