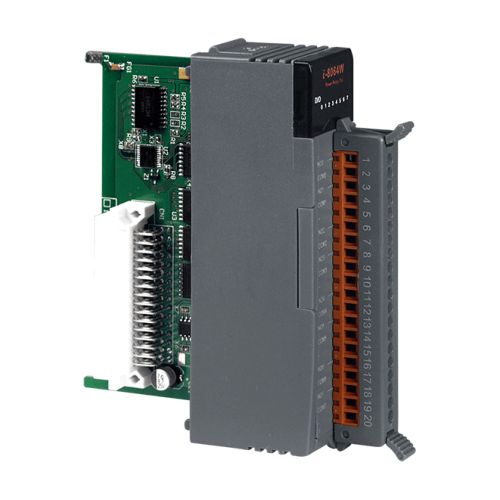

I-8064W-G CR ICP DAS Relay IO Modules

Digital Output

Output Channels: 8
Output Type: Power Relay, Form A (Normal Open)
Relay Contact Voltage Range:
                       5A@250VAC(47~63Hz)
                       5A@30VDC
Max Load Current: 5.0 Arms
Max. Operate Time: 6 ms Max.
Max. Release Time: 3 ms Max.
Insulation Resistance: Min. 1,000 MOhms, at 500VDC
Dielectric Strength:
                      Between Open Contacts: 750Vrms (at 1 Minute)
                      Between Coil and Contacts: 2000Vrms (at 1 Minute)
Surge Strength: 4000V (at 1.2*50us)
Relay Life:
              Mechanical: 2*10,000,000 Min.
              Electrical: 100, 000 min. , Resistive

LED Display

1 LED as Power Indicator
8 LEDs as Power Relay Indicators

Power

Power Consumption: 0.22A@5V = 1.1W ,+/- 5% For Hardware version 1.5

Environment

Operating Temperature: -25 to 75 °C
Storage Temperature: -30 to 85 °C
Humidity: 5 to 95% RH, non-condensing

Dimensions

30mm x 102mm x 115mm (W x L x H)
