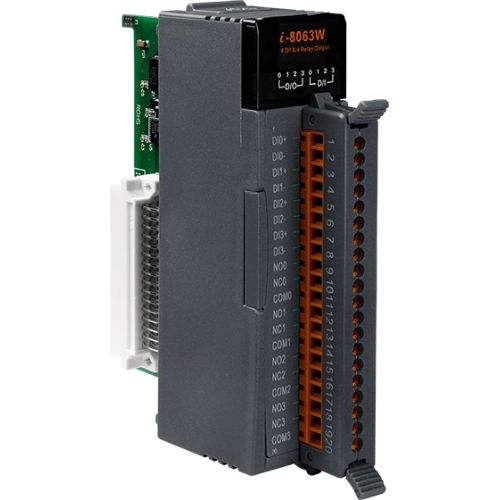

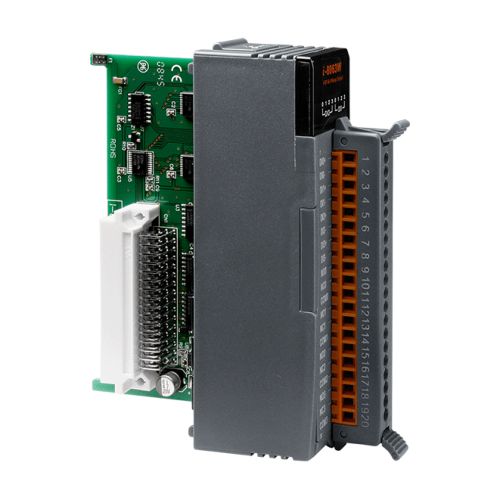

I-8063W-G CR
4-ch Isolated Digital input (Wet) and 4-ch Form C Power Relay Module
Digital Input
Input Channels: 4 ( Sink / Source )
Input Type: Differential
On Voltage Level: +10V ~ 30V
Off Voltage Level: +4V max
Input Impedance: 3K Ohms, 0.5W
Intra-module Isolation, Field to Logic: 3750Vrms
4KV ESD Protection: contact for each channel
Digital Output
Output Channels: 4
Output Type: Power Relay, Form C
Relay Contact Voltage Range:
5A(NO)/3A(NC)@30VDC
5A(NO)/3A(NC)@277VAC
Max. load Current: 5A(NO)/3A(NC) at 65°C
Max. Operate Time: 10 ms Max.
Max. Release Time: 5 ms Max.
Insulation Resistance: Min. 100 M Ohm, at 500VDC
Dielectric Strength:
Between Open Contacts: 500Vrms (at 1 Minute)
Between Coil and Contacts: 1000Vrms (at 1 Minute)
Relay Life:
Mechanical: 100,000,000 min.
Electrical: 500, 000 Min. at 30VDC@2A, Resistive
4KV ESD Protection: contact for each channel
LED Display
1 LED as Power Indicator
8 LEDs as Digital Input and Relay output Indicators
Power
Power Consumption: 0.4A @ 5V = 2W, +/- 5% For Hardware
Environment
Operating Temperature: -25 to 75 °C
Storage Temperature: -30 to 85 °C
Humidity: 5 to 95% RH, non-condensing
Dimensions
30mm x 102mm x 115mm (W x L x H)
