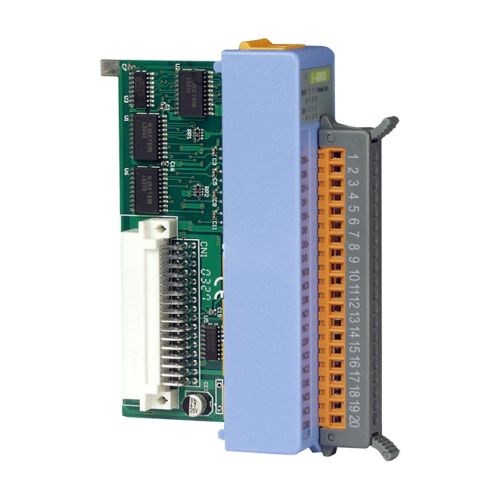

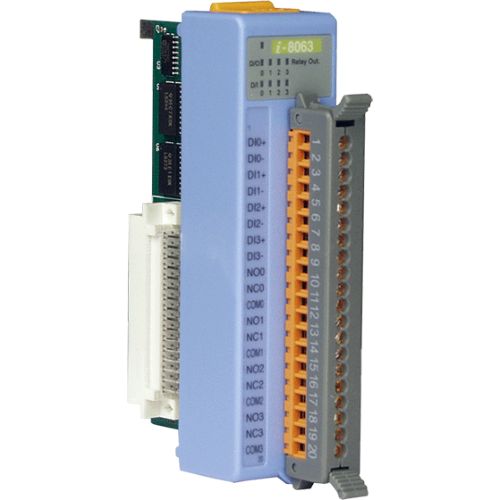

I-8063 CR ICP DAS Relay IO Modules

Digital Input

Input Channels: 4 (Sink/Source)
Input Type: Isolation, Differential
On Voltage Level: +3.5V ~ 30V
Off Voltage Level: +1V max
Input Impedance: 3K Ohms, 0.25W
Intra-module Isolation, Field to Logic: 3750Vrms

Digital Output

Output Channels: 4
Output Type: Power Relay, Form C
Operating Voltage Range:
            5 ~ 110VAC@0.6A (47~63Hz)
            5 ~ 24VDC@2A
Relay Contact Voltage Range:
            0~ 125VAC@0.6A (47~63Hz)
            0~ 30VDC@2A
Max. load Current: 2.0A at 65°C
Max. Operate Time: 3 ms Max.
Max. Release Time: 2 ms Max.
Insulation Resistance: Min. 100 MOhms, at 500VDC
Dielectric Strength:
            Detween Open Contacts: 500Vrms (at 1 Minute)
            Detween Coil and Contacts: 1000Vrms (at 1 Minute)
Relay Life:
            Mechanical: 100,000,000 min.
            Electrical: 500, 000 Min. at 30VDC@2A, Resistive

LED Display

1 LED as Power Indicator
8 LEDs as Digital Input and Relay output Indicators

Power

Power Consumption: 0.4A @ 5V = 2W, +/- 5% For Hardware version 2.2

Environment

Operating Temperature: -25 to 75 °C
Storage Temperature: -30 to 75 °C
Humidity: 5 to 95% RH, non-condensing

Dimensions

30mm x 88mm x 115mm (W x L x H)
