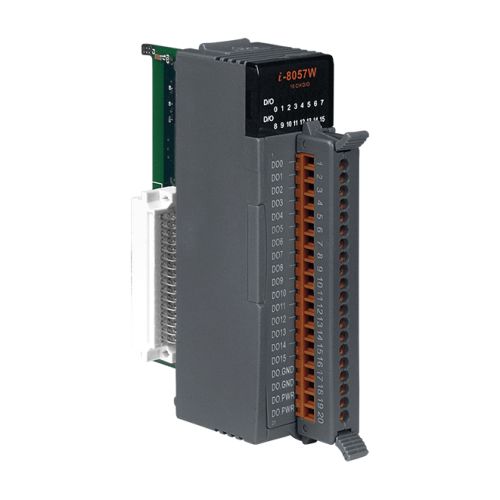

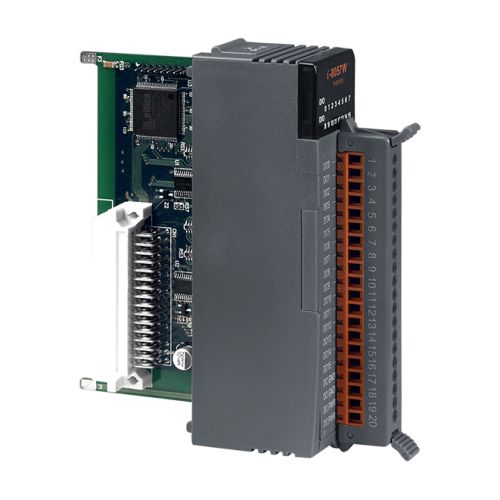

I-8057W-G CR ICP DAS Digital IO Modules

I-8057W-G CR ICP DAS

I-8057W-G CR ICP DAS

I-8057W-G CR

16-ch Isolated Digital output Module

Quantity:

Price

€ 101,57

(VAT excluded)

€ 123,92(VAT included)

Prezzo di 1 pz. iva (22%) inclusa: € 123,92

Availability: 15 business days

SKU: 3219

Model: I-8057W-G CR

I-8057W-G CR technical sheet

I-8057W-G CR datasheet

I-8057W-G CR scheda prodotto

Print Product Sheet

Need Help?

Write us
an email

Call us
051 6604005
Share

Digital Output

Output Channels: 16 (Sink)
Output Type: Open-collector
Max Load Current: 100 mA/ channel
Load Voltage: 5Vdc to 30Vdc
Intra-module Isolation, Field to Logic: 3750Vrms

LED Display

1 LED as Power Indicator
16 LEDs as Digital Output Indicators

Power

Power Consumption: 0.18A@5V = 0.9W, +/- 5% For Hardware version 1.7

Environment

Operating Temperature: -25 to 75 °C
Storage Temperature: -30 to 75 °C
Humidity: 5 to 95% RH, non-condensing

Dimensions

30mm x 102mm x 115mm (W x L x H)
