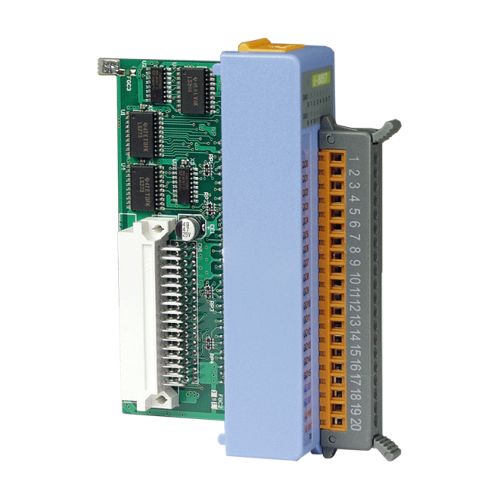

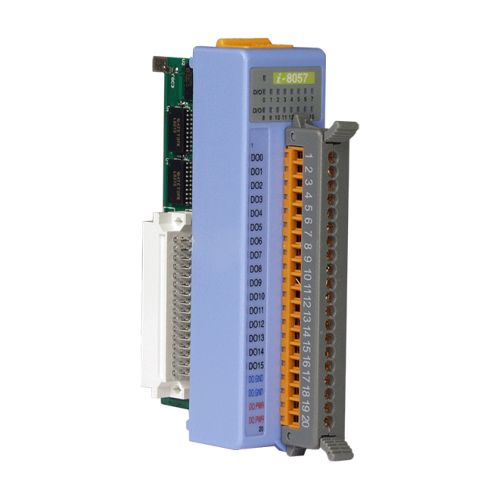

I-8057 CR ICP DAS Digital IO Modules

Digital Output

Output Channels: 16 (Sink)
Output Type: Isolated Open-collector
Max Load Current: 100 mA/ channel
Load Voltage: 5Vdc to 30Vdc
Intra-module Isolation, Field to Logic: 3750Vrms

LED Display

1 LED as Power Indicator
16 LEDs as Digital Output Indicators

Power

Power Consumption: 0.2A @ 5V = 1W, +/- 5% For Hardware version 6.4

Environment

Operating Temperature: -25 to 75 °C
Storage Temperature: -30 to 75 °C
Humidity: 5 to 95%, Non-condensing

Dimensions

30mm x 88mm x 115mm (W x L x H)
