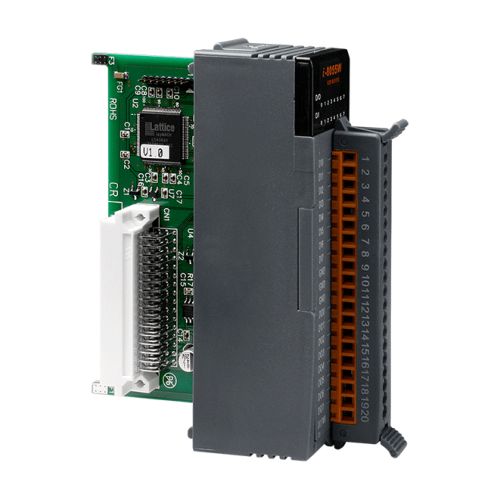

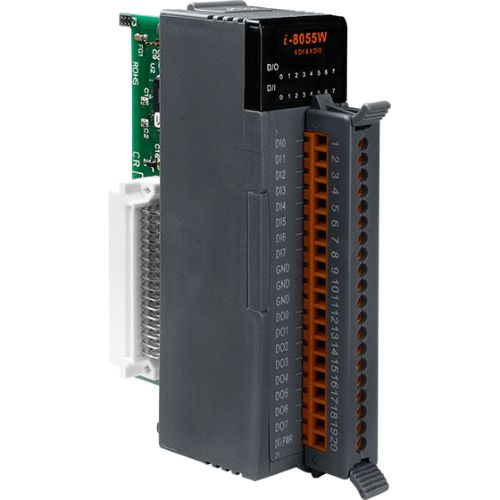

I-8055W-G CR, 8-ch Non-isolated Digital input (Dry) and 8-ch Non-isolated Digital output (Sink, NPN) Module
I-8055W-G CR
8-ch Non-isolated Digital input (Dry) and 8-ch Non-isolated Digital output (Sink, NPN) Module
Digital Input
Input Channels: 8(Source)
Input Type: Non-isolated digital logic
On Voltage Level: Connect to GND
Off Voltage Level: Open
4KV ESD Protection: Contact for each channel
Digital Output
Output Channels: 8 (Sink)
Output Type: Non-isolated Open-collector
Max Load Current: 100 mA/ channel
Load Voltage: +5Vdc to +30Vdc
4KV ESD Protectio: Contact for each channel
LED Display
1 LED as Power Indicator
16 LEDs as Digital Input and Output Indicators
Power
Power Consumption: 0.2A @ 5V = 1W ,+/- 5% For Hardware
Environment
Operating Temperature: -25 to 75 °C
Storage Temperature: -30 to 85 °C
Humidity: 5 to 95%, Non-condensing
Dimensions
30 mm x 102 mm x 115 mm (W x L x H)
