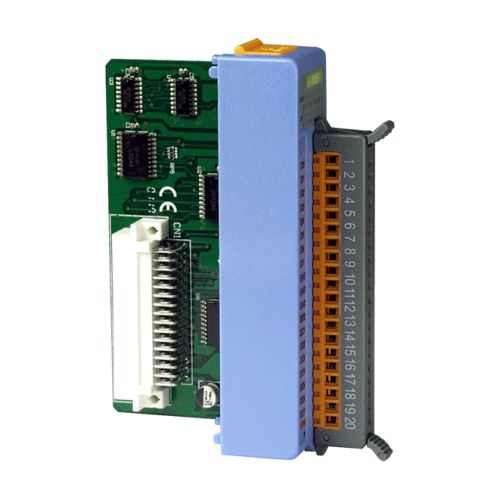

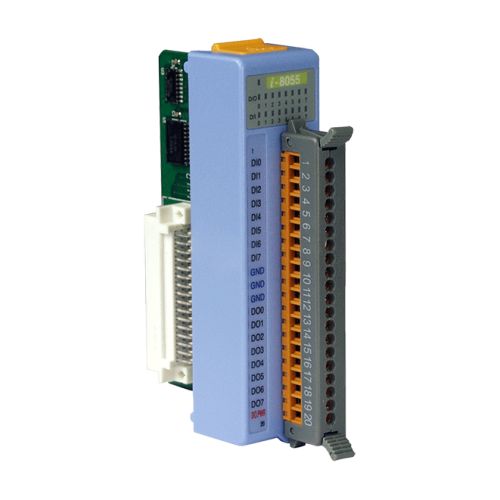

I-8055 CR, 8-ch Non-isolated Digital input and 8-ch Non-isolated Digital output Module
I-8055 CR
8-ch Non-isolated Digital input and 8-ch Non-isolated Digital output Module
Free Shipping
Digital Input
Input Channels: 8(Source)
Input Type: Non-isolated digital logic
On Voltage Level: +1V max (Connect to GND)
Off Voltage Level: +3.5V ~ +30V (Open)
Digital Output
Output Channels: 8 (Sink)
Output Type: Non-isolated Open-collector
Max Load Current: 100 mA/ channel
Load Voltage: +5Vdc to +30Vdc
LED Display
1 LED as Power Indicator
16 LEDs as Digital Input and Output Indicators
Power
Power Consumption: 0.1A @ 5V = 0.5W ,+/- 5% For Hardware version 2.0
Environment
Operating Temperature: -25 to 75 °C
Storage Temperature: -30 to 85 °C
Humidity: 5 to 95%, Non-condensing
Dimensions
30mm x 88mm x 115mm (W x L x H)
