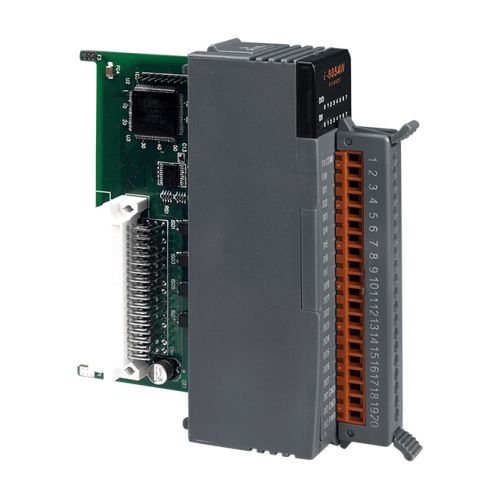

I-8054W-G CR ICP DAS Digital IO Modules

Digital Input

Input Channels: 8 (Sink/ Source)
Input Type: One Common for All Digital Inputs
On Voltage Level: +10V ~ 50V
Off Voltage Level: +4V max
Input Impedance: 10K Ohms, 0.5W
Intra-module Isolation, Field to Logic: 3750V rms

Digital Output

Output Channels: 8 (Sink)
Output Type: Open-collector
Max Load Current: 700mA/ channel
Load Voltage: 5Vdc to 50Vdc
Intra-module Isolation, Field to Logic: 3750V rms

LED Display

1 LED as Power Indicator
16 LEDs as Digital Input and Output Indicators

Power

Power Consumption: 0.11A @ 5V = 0.55W ,+/- 5% For Hardware version 1.5

Environment

Operating Temperature: -25 to 75 °C
Storage Temperature: -30 to 85 °C
Humidity: 5 to 95%, Non-condensing

Dimensions

30mm x 102mm x 115mm (W x L x H)
