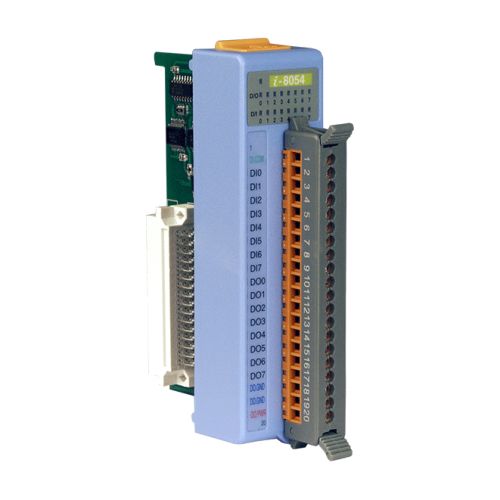

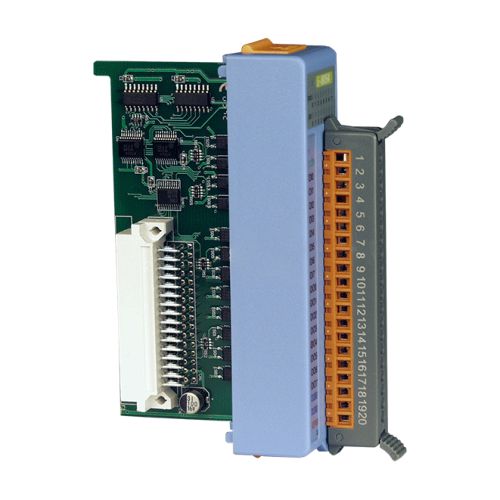

I-8054 CR ICP DAS Digital IO Modules

Digital Input

Input Channels: 8 (Sink/ source)
Input Type: Isolation, One Common for All Digital Inputs
On Voltage Level: +3.5V ~ 30V
Off Voltage Level: +1V max
Input Impedance: 3K Ohms, 0.25W
Intra-module Isolation, Field to Logic: 3750V rms

Digital Output

Output Channels: 8 (Sink)
Output Type: Isolated Open-collector
Max Load Current: 375mA/ channel
Load Voltage: 5Vdc to 30Vdc
Intra-module Isolation, Field to Logic: 3750V rms

LED Display

1 LED as Power Indicator
16 LEDs as Digital Input and Output Indicators

Power

Power Consumption: 0.2A @ 5V = 1W ,+/- 5% For Hardware version 2.5

Environment

Operating Temperatur: -25 to 75 °C
Storage Temperature: -30 to 75 °C
Humidity: 5 to 95%, Non-condensing

Dimensions

30mm x 88mm x 115mm (W x L x H)
