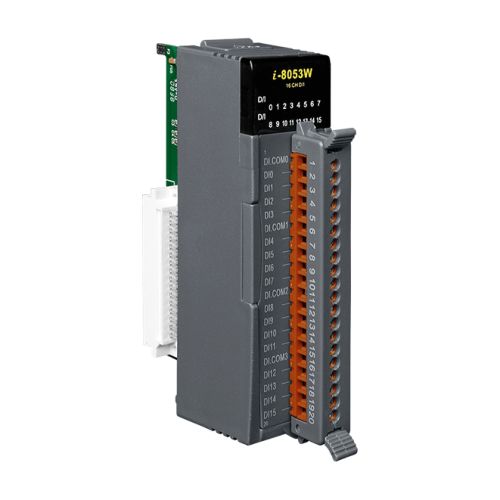

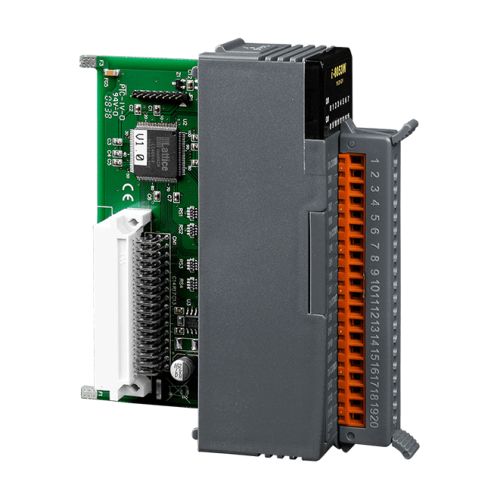

I-8053W-G CR ICP DAS Digital IO Modules

Digital Input

Input Channels: 16 ( Sink / Source )
Input Type: Four Commons for All Inputs
On Voltage Level: +10 V ~ +30 V
Off Voltage Level: +4 V max
Input Impedance: 3K Ohms, 0.5W
Intra-module Isolation, Field to Logic: 3750V rms
4KV ESD Protection: Contact for each channel

LED Display

1 LED as Power Indicator
16 LEDs as Digital Input Indicators

Power

Power Consumption: 0.08 A @ 5 V = 0.4 W ,+/- 5 % For Hardware version 1.2

Environment

Operating Temperature: -25 to 75 °C
Storage Temperature: -30 to 85 °C
Humidity: 5 to 95%, Non-condensing

Dimensions

30 mm x 102 mm x 115 mm (W x L x H)
