features and benefits

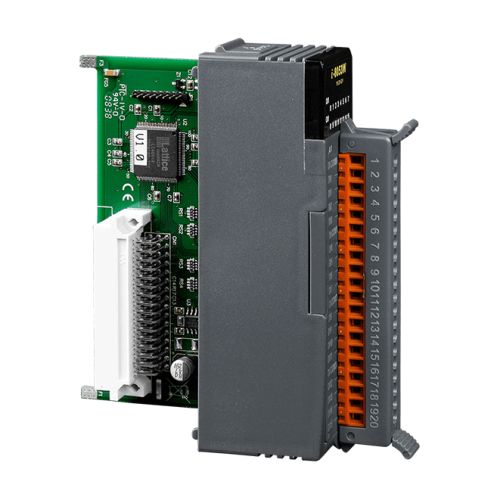

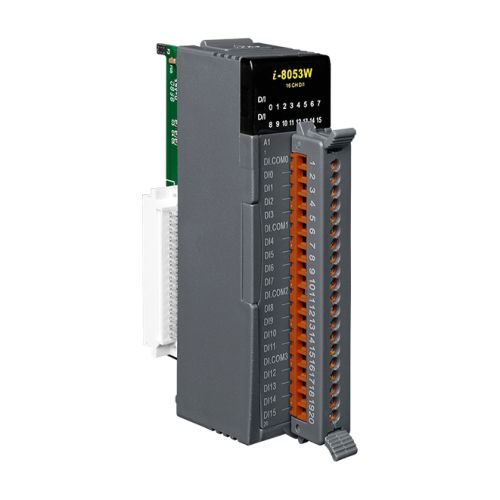

The I-8053W-A1 oΩer 16 channels for Digital Input, catering for wet contact.
The I-8053W-A1 provides 16 LED indicators that can be used to monitor the DI channel status.
4 kV ESD protection and 3750 VDC intra-module isolation are also provided to enhance noise immunity capabilities in industrial environments.
- 32-Channel Digital Input
- Support Sink/Source Type Digital Input
- Photocouple Isolation Protection
specifications
Isolation| Intra-module Isolation | 3750 VDC |
|---|
EMS Protection| ESD (IEC 61000-4-2) | ± 4 kV Contact for Each Terminal |
|---|
LED Indicators| Status | 1 x Power and Communication | 16 x I/O |
|---|
Digital Input| Channels | 16 |
|---|
| Type | Wet Contact |
|---|
| Sink/Source (NPN/PNP) | Sink/Source |
|---|
| ON Voltage Level | +3.5 ~ +30 VDC |
|---|
| OFF Voltage Level | +1 VDC Max. |
|---|
| Input Impedance | 10 kΩ, 1W |
|---|
Power| Consumption | 0.4 W Max. |
|---|
Mechanical| Dimensions (mm) | 30 x 102 x 115 (W x L x H) |
|---|
Environment| Operating Temperature | -25 ~ +75 °C |
|---|
| Storage Temperature | -30 ~ +85 °C |
|---|
| Humidity | 5 ~ 95 % RH, Non-condensing |
|---|
