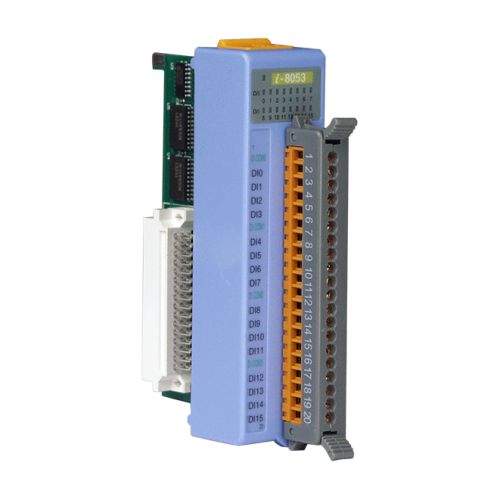

I-8053 CR ICP DAS Digital IO Modules

Digital Input

Input Channels: 16 (Sink/ source)
Input Type: Isolation, Four Commons for All Inputs
On Voltage Level: +3.5V ~ +30V
Off Voltage Level: +1V max
Input Impedance: 3K Ohms, 0.25W
Intra-module Isolation, Field to Logic: 3750V rms

LED Display

1 LED as Power Indicator
16 LEDs as Digital Input Indicators

Power

Power Consumption: 0.18A @ 5V = 0.9W ,+/- 5% For Hardware version 2.0

Environment

Operating Temperature: -25 to 75 °C
Storage Temperature: -30 to 85 °C
Humidity: 5 to 95%, Non-condensing

Dimensions

30mm x 88mm x 115mm (W x L x H)
