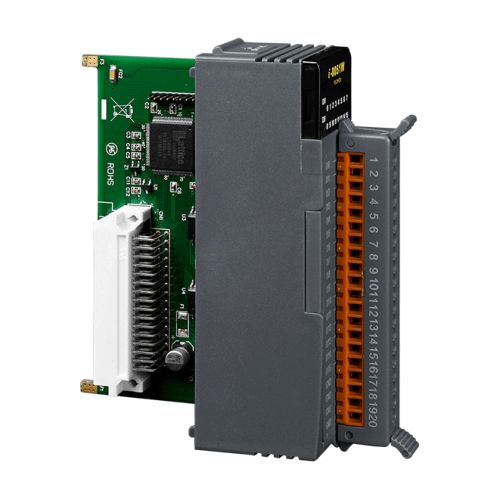

I-8051W-G CR ICP DAS Digital IO Modules

Digital Input

Input Channels: 16 (Source)
Input Type: Non-isolated
On Voltage Level: Connect to GND
Off Voltage Level: Open
Effective Distance: 500m Max.
4KV ESD Protection: Contact for each channel

LED Display

1 LED as Power Indicator
16 LEDs as Digital Input Indicators

Power

Power Consumption: 0.22A @ 5V = 1.1W, +/- 5% For Hardware version 1.4

Environment

Operating Temperature: -25 to 75 °C
Storage Temperature: -30 to 85 °C
Humidity: 5 to 95% RH, non-condensing

Dimensions

30mm x 102mm x 115mm (W x L x H)
