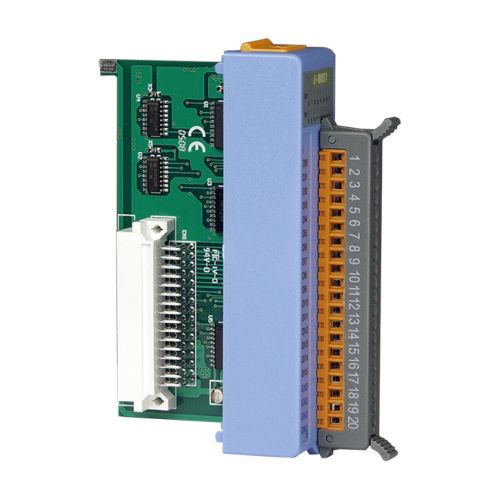

I-8051 CR, 16-ch Non-isolated Digital input Module
I-8051 CR
16-ch Non-isolated Digital input Module
Digital Input
Input Channels: 16(Source)
Input Type: Non-isolated
On Voltage Level: +1V max (Connect to GND.)
Off Voltage Level: +3.5V ~ 30V (Open)
LED Display
1 LED as Power Indicator
16 LEDs as Digital Input Indicators
Power
Power Consumption: 0.09A @ 5V = 0.45W, +/- 5% For Hardware version 2.0
Environment
Operating Temperature: -25 to 75 °C
Storage Temperature: -30 to 75 °C
Humidity: 5 to 95% RH, non-condensing
Dimensions
30mm x 88mm x 115mm (W x L x H)
