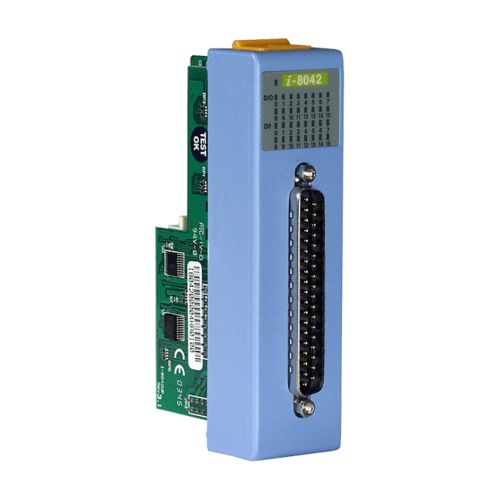

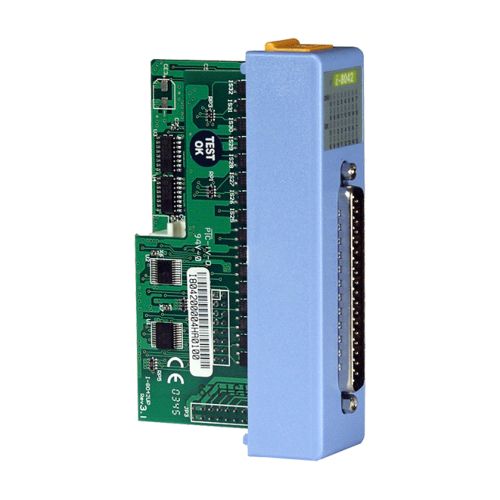

I-8042 CR ICP DAS Digital IO Modules

Digital Input

Input Channels: 16 (Sink/ source)
Input Type: Isolation, One Common for All Digital Inputs
On Voltage Level: +3.5V ~ 30V
Off Voltage Level: +1V max
Input Impedance: 3K Ohms, 0.33W
Intra-module Isolation, Field to Logic: 3750Vrms

Digital Onput

Output Channels: 16 (Sink)
Output Type: Isolated Open-collector
Max Load Current: 100 mA/ Channel
Load Voltage: 5Vdc to 30Vdc
Intra-module Isolation, Field to Logic: 3750Vrms

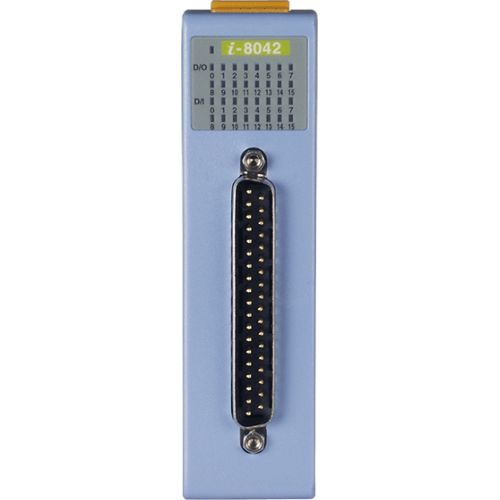

LED Display

1 LED as Power Indicator
32 LEDs as Digital Output Indicators

Power

Power Consumption: 0.3A @ 5V = 1.5W ,+/- 5% For Hardware version 7.1

Environment

Operating Temperature: -25 to 75 °C
Storage Temperature: -30 to 75 °C
Humidity: 5 to 95%, Non-condensing

Dimensions

30mm x72mm x 114mm (W x L x H)
