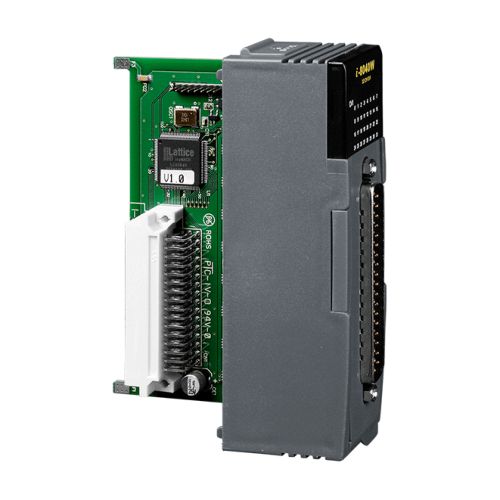

I-8040W-G CR ICP DAS Digital IO Modules

Digital Input

Input Channels: 32 (Sink/ source)
Input Type: One Common for All Digital Inputs
On Voltage Level: +10V ~ +30V
Off Voltage Level: +4V max
Input Impedance: 3K Ohms, 0.5W
Intra-module Isolation, Field to Logic: 3750Vrms
4KV ESD Protection: Contact for each channel

LED Display

1 LED as Power Indicator
32 LEDs as Digital Input Indicators

Power

Power Consumption: 0.13A@5V = 0.65W ,+/- 5% For Hardware version 1.6

Environment

Operating Temperature: -25 to 75 °C
Storage Temperature: -30 to 85 °C
Humidity: 5 to 95%, Non-condensing

Dimensions

30mm x 85mm x 114mm (W x L x H)
