features and benefits

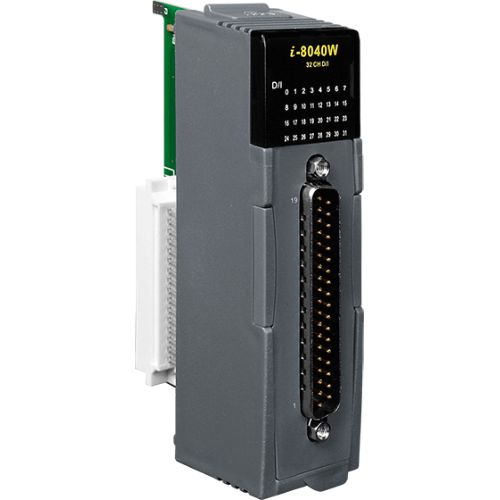

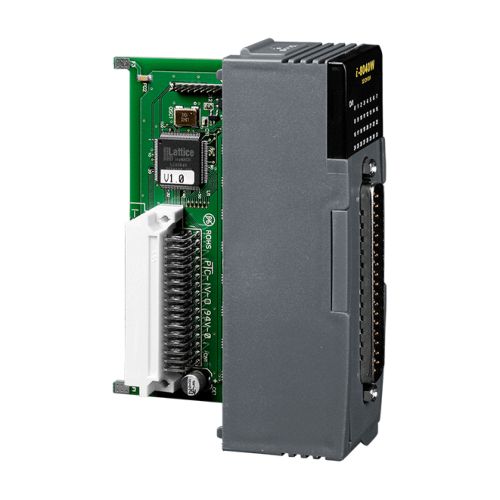

The I-8040W-A1 offer 32 channels for Digital Input, each of which features Photocouple-isolation.
Either Sink Type or Source Type Input can be selected via wire connections.
All channels ±4 kV ESD protection and 3750 VDC intra-module isolation.
Paired with a daughter board such as the DN-37-381-A CR, wiring is easier than ever.
- 32-Channel Digital Input
- Support Sink/Source Type Digital Input
- Photocouple Isolation protection
- Optional Daughter Board Connectivity
specifications
Isolation| Intra-module Isolation | 3750 VDC |
|---|
EMS Protection| ESD (IEC 61000-4-2) | ± 4 kV Contact for Each Terminal |
|---|
LED Indicators| Status | 1 x Power and Communication | 32 x I/O |
|---|
Digital Input| Channels | 32 |
|---|
| Type | Wet Contact |
|---|
| Sink/Source (NPN/PNP) | Sink/Source |
|---|
| ON Voltage Level | +3.5 ~ +30 VDC |
|---|
| OFF Voltage Level | < +1 VDC Max. |
|---|
| Input Impedance | 3 kΩ, 0.5W |
|---|
Power| Consumption | 0.65 W Max. |
|---|
Mechanical| Dimensions (mm) | 30 x 85 x 114 (W x L x H) |
|---|
Environment| Operating Temperature | -25 ~ +75 °C |
|---|
| Storage Temperature | -40 ~ +85 °C |
|---|
| Humidity | 10 ~ 90% RH, Non-condensing |
|---|
