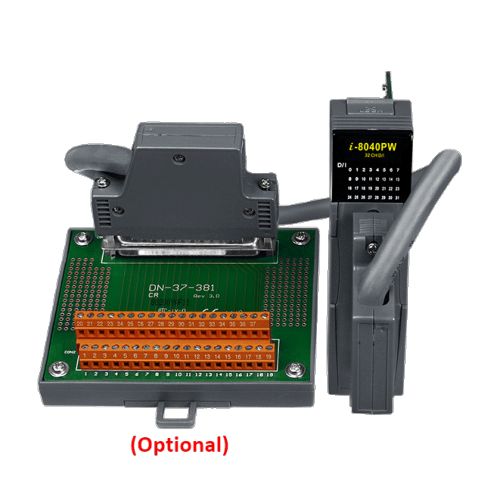

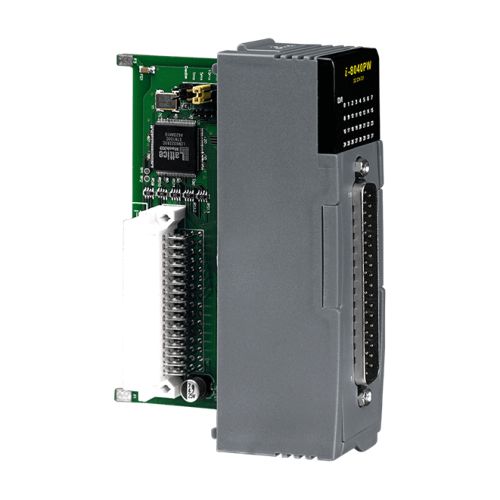

I-8040PW-G CR
32-ch Isolated Digital Input (Wet, Sink/Source) Module with Low Pass Filter
Digital Input
Input Channels: 32 (Sink/Source)
Input Type: One Common for All Digital Inputs
On Voltage Level: +19 V ~ +30 V
Off Voltage Level: +11V max
Input Impedance: 3K Ohms, 0.5W
Intra-module Isolation, Field to Logic: 3750 Vrms
Low Pass Filter
Response time: OFF to ON: 1ms/5ms/10ms/20ms/40ms/70ms (by Jumper select) or CPU parameter setting
Default Setting is 10ms
ON to OFF: 1ms/5ms/10ms/20ms/40ms/70ms (by Jumper select) or CPU parameter setting
Default Setting is 10ms
LED Display
1 LED as Power Indicator
32 LEDs as Digital Input Indicators
Power
Power Consumption: 0.2A@5V = 1W ,+/- 5% For Hardware version 1.0
Environment
Operating Temperature: -25 ~ +75 °C
Storage Temperature: -30 ~ +85 °C
Humidity: 5 ~ 95% RH, non-condensing
Dimensions
30mm x 85mm x 114mm (W x L x H)
