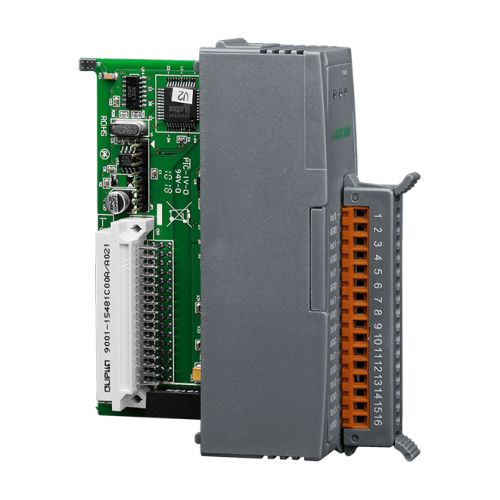

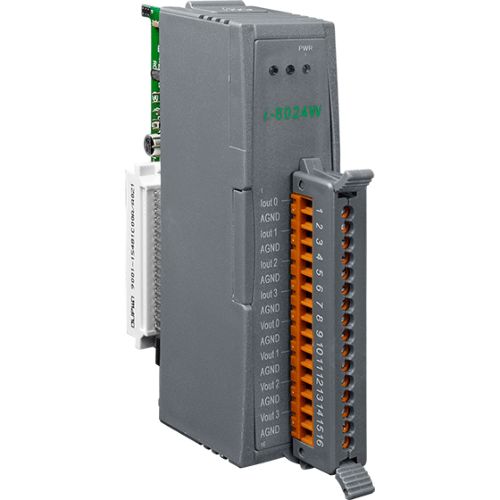

I-8024W-G CR
4-ch Analog Output Module
- 4-channel Voltage or Current Output
- Individual Channel Configuration
- ±4 kV ESD Protection
- 3000 VDC Intra-module Isolation
- Wide Operating Temperature Range: -25 to +75°C
INTRODUCTION
The I-8024W is a 14-bit analog output module, which offers 4 single-ended analog output channels. Each channel can be programmed to an individual output range of ±10 V or 0 ~ +20 mA.
The I-8024W provides RF immunity level matching that defi ned by IEC 61000-4-3 standard, together with 4 kV ESD protection as well as 3000 VDC intra-module isolation.
SPECIFICATIONS
Analog Output
Output Channels: 4
Output Type: +/- 10 V, 0 ~ +20 mA
Resolution: 14-bit
Accuracy: +/- 0.1% of FSR for voltage output ; +/- 0.2% of FSR for current output
Readback Accuracy: +/-1% of FSR
Zero Drift: Voltage: +/-30 μV/ °C
Current: +/-0.2 μA/ °C
Span Drift: +/- 20ppm/°C
Voltage Output Capability: 10 V @ 20 mA
Max Current Load Resistance: External +24V: 1050 Ohms
4KV ESD Protection: Yes, Contact for each terminal.
Intra-module Isolation, Field to Logic: 3000 VDC
LED Display
1 LED as Power
Power
Power Consumption: 0.4 A @ 5 VDC = 2W ,+/- 5%
Environment
Operating Temperature: -25 ~ 75 °C
Storage Temperature: -30 ~ 75 °C
Humidity: 5 ~ 95%, Non-condensing
Dimensions
30 mm x 102 mm x 115 mm (W x L x H)
