features and benefits

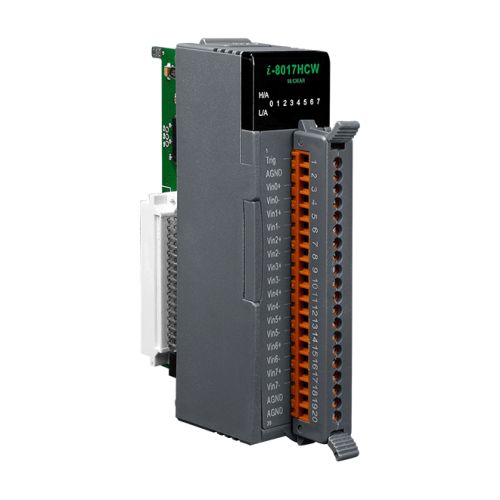

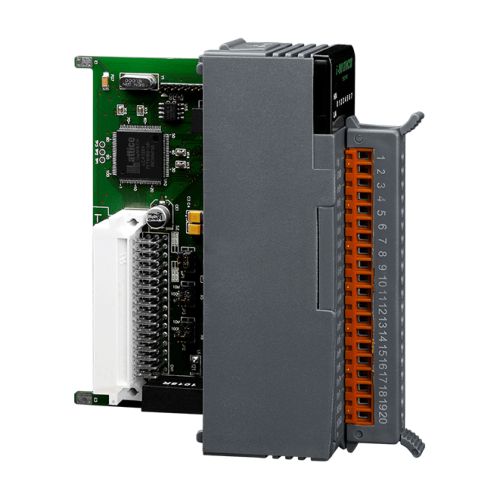

The I-8017HCW is a high performance Analog Input Module.
Up to 16 single-ended or 8 differential input channels are provided with 14-bit of resolution and 90 kS/s sampling rate.
Each channel can be configured to an individual input range of ±10 VDC, ±5 VDC, ±2.
5 VDC, ±1.
25 VDC or ±20 mA.
The modules also provide ±4 kV ESD protection as well as 2500 VDC intra-module isolation.
All the three modules can be used to measure voltage and current source.

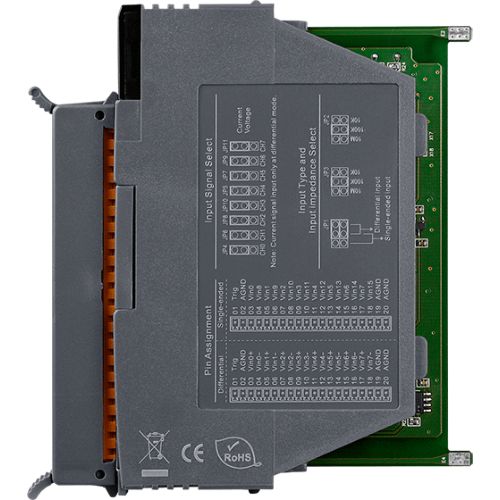

On the I-8017HCW, an internal resistor is jumper-selectable for differential current input.
The jumper is factory default setting for voltage measurement on the I-8017HCW.
- 8 Differential/16 Single-ended Analog Inputs
- Voltage or Current (Jumper Select) Input
- 14-bit 100 kHz AD Converter
- Internal Trigger
- Individual Channel Configuration
specifications
Isolation| Intra-module Isolation | 2500 VDC |
|---|
EMS Protection| ESD (IEC 61000-4-2) | ± 4 kV Contact for Each Terminal |
|---|
LED Indicators| Status | 1 x Power and Communication | 16 x I/O |
|---|
Analog Input| Channels | 16-ch Single-ended/8-ch Differential |
|---|
| Range | Voltage: ±10 VDC, ±5 VDC, ±2.5 VDC, ±1.25 VDC | Current: ±20 mA, Jumper Selectable |
|---|
| Resolution | 14-bit |
|---|
| Accuracy | ±0.1% of FSR |
|---|
| Sampling Rate | Single Channel Polling Mode: 90 kS/s | Single Channel Interrupt Mode: 50 kS/s | 8 channel Scan Mode: 16 kS/s |
|---|
| Bandwidth | 100 kHz |
|---|
| Input Impedance | 20 K, 200 K, 20 M (Jumper Selectable) |
|---|
| Individual Channel Configuration | Yes |
|---|
| Zero Drift | ±0.1 uV/°C |
|---|
| Span Drift | ±10 ppm/°C |
|---|
Mechanical| Dimensions (mm) | 30 x 102 x 115 (W x L x H) |
|---|
Environment| Operating Temperature | -25 ~ +75 °C |
|---|
| Storage Temperature | -40 ~ +85 °C |
|---|
| Humidity | 10 ~ 90% RH, Non-condensing |
|---|
